1000W ADATA XPG CYBERCORE II POWER SUPPLY
1000W ADATA XPG CYBERCORE II POWER SUPPLY
SKU:CYBERCOREII1000P-BKCAU
Regular price
$287.00
Regular price
Sale price
$287.00
Unit price
per
In stock
Couldn't load pickup availability
-
Description
-
| SPECIFICATIONS & DETAILS | |
| Model Name | |
| CYBERCOREII1000P-BKCAU | |
| Specifications | |
| PRODUCT NAME | CYBERCORE II Modular Power Supply |
| DIMENSIONS (L X W X H) | 160 x 150 x 86mm |
| CYBENETICS RATING | PLATINUM |
| 80 PLUS RATING | PLATINUM |
| ATX VERSION | ATX 3.0 |
| PROTECTIONS | OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP |
| CERTIFICATION | CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM |
| PFC | >0.99 |

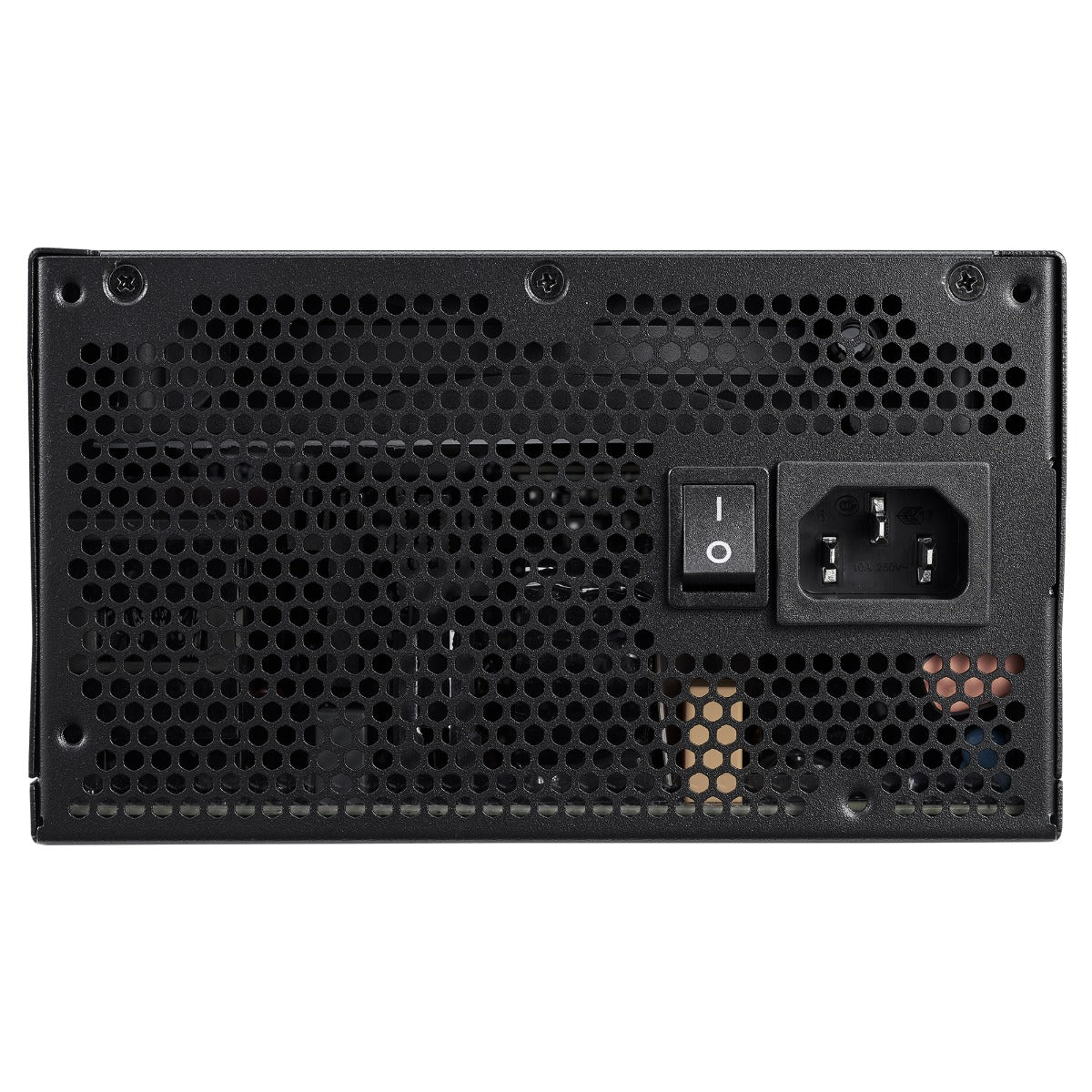

| INPUT VOLTAGE | 100V-240V |
| INPUT CURRENT | (1)1300W：15A (2)1000W：13A |
| INPUT FREQUENCY | (1)1300W：50-60Hz (2)1000W：50-60Hz |
| DC OUTPUT VOLTAGE | +5V | +3.3V | +12V | -12V | +5Vsb |
| TOTAL OUTPUT | (1) 1300W (2) 1000W |
| POWER EXCURSION | 1000W: 2000W (*up to 200% of the PSU's rated power for 100μs) 1300W: 2600W (*up to 200% of the PSU's rated power for 100μs) |
| OPERATING TEMPERATURE | 50°C |

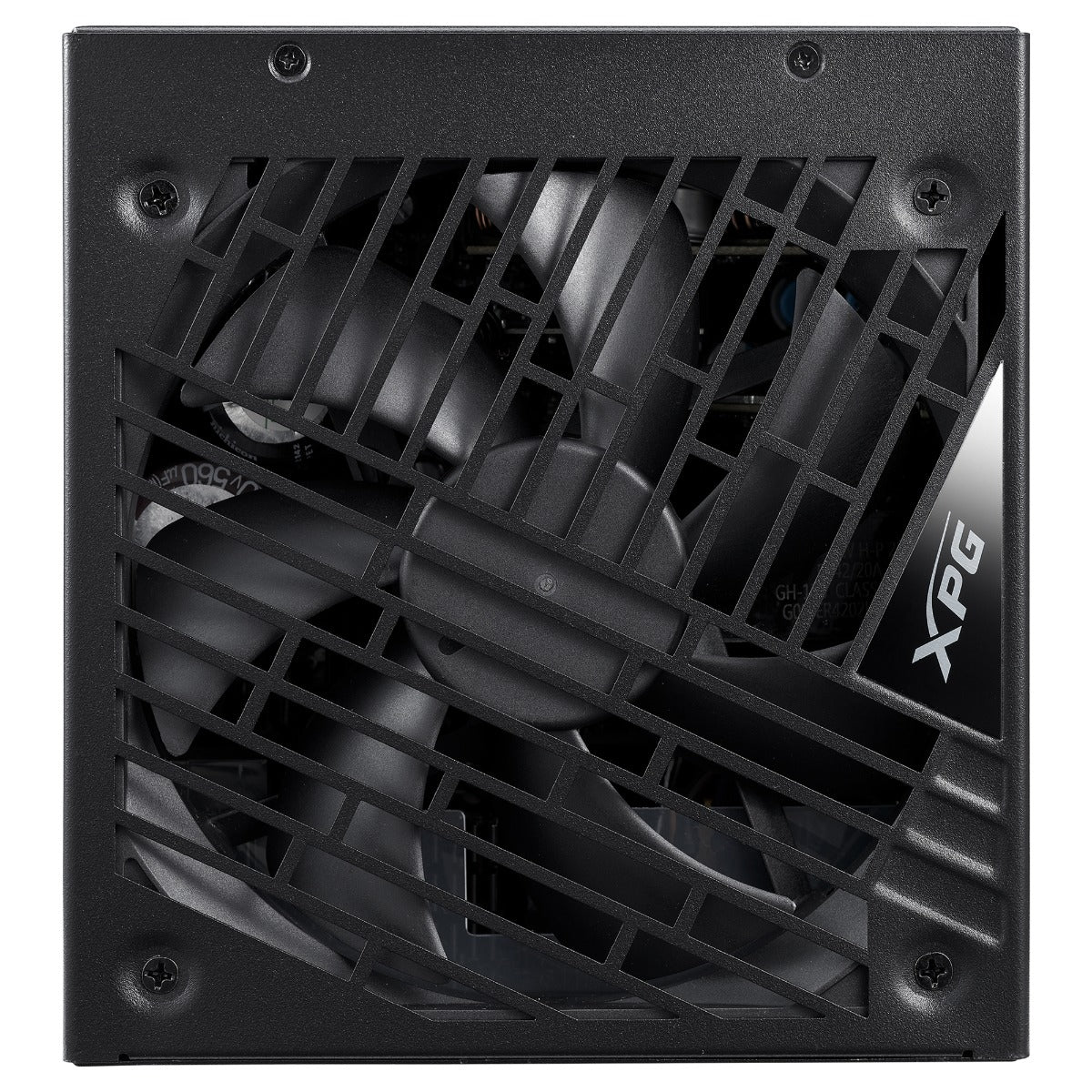

| FAN SIZE | 120mm |
| FAN BEARING | Double Ball Bearing |
| FAN SPEED | 2,150 RPM |
| MTBF | 125,000 hours @ 25°C |
| ATX 24 PIN CONNECTOR | 1300W：1 1000W：1 |
| EPS 8 PIN CONNECTOR | 1300W：2 1000W：2 |
| PCI-E 6+2 PIN CONNECTOR | 1300W：10 1000W：6 |
| MOLEX 4 PIN CONNECTOR | 1300W：8 1000W：4 |
| 12V-2X6 (12+4) CONNECTOR (600W) | 1 |
| SATA CONNECTOR | 1300W：12 1000W：8 |
| WEIGHT | 1000W： Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5% with Package：4.13kg (9.1lb) ±5% 1300W： Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5% with Package：4.6kg (10.1lb) ±5% |
| WARRANTY | 10 Years |
| FLOPPY 4 PIN CONNECTOR | 1300W：2 1000W：1 |
