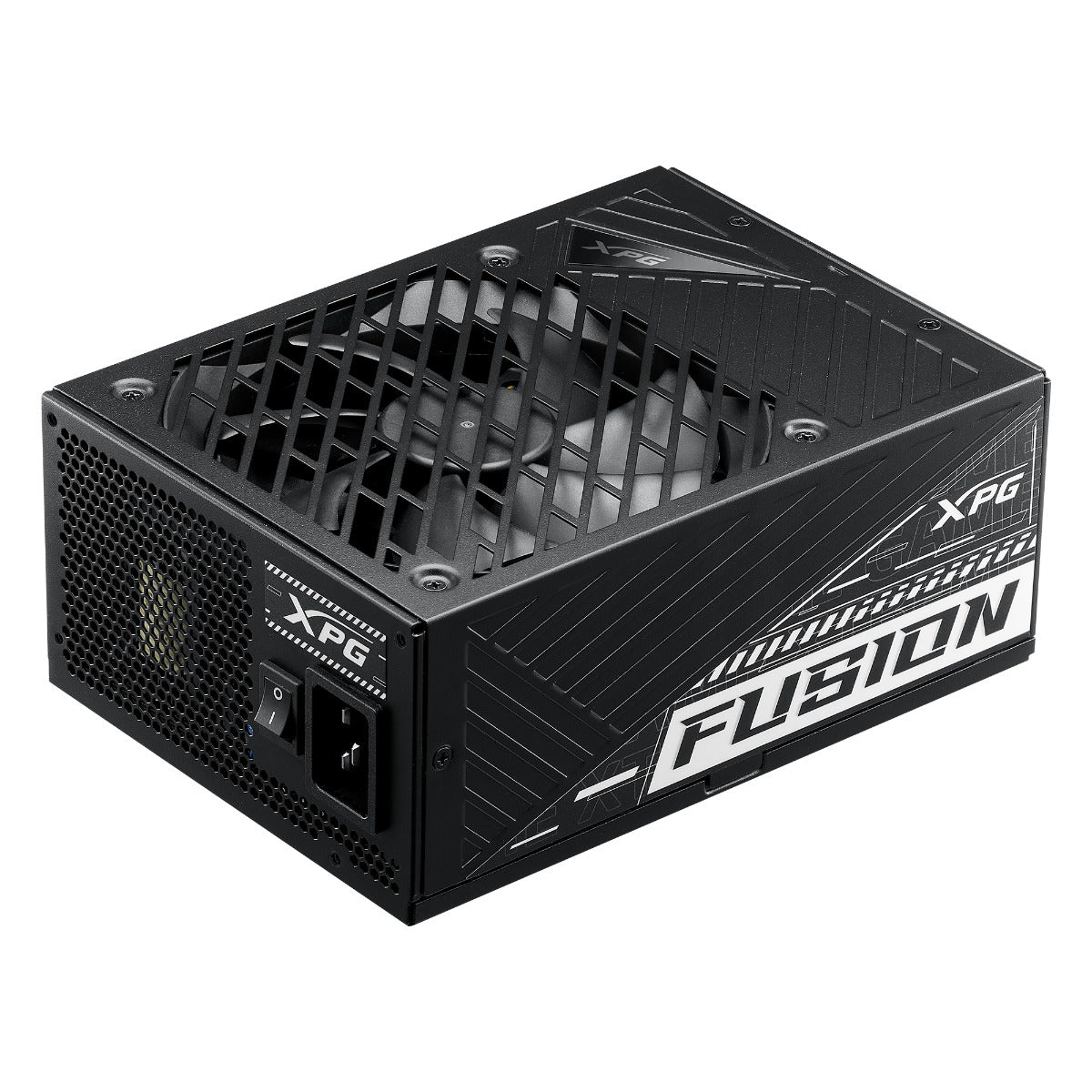

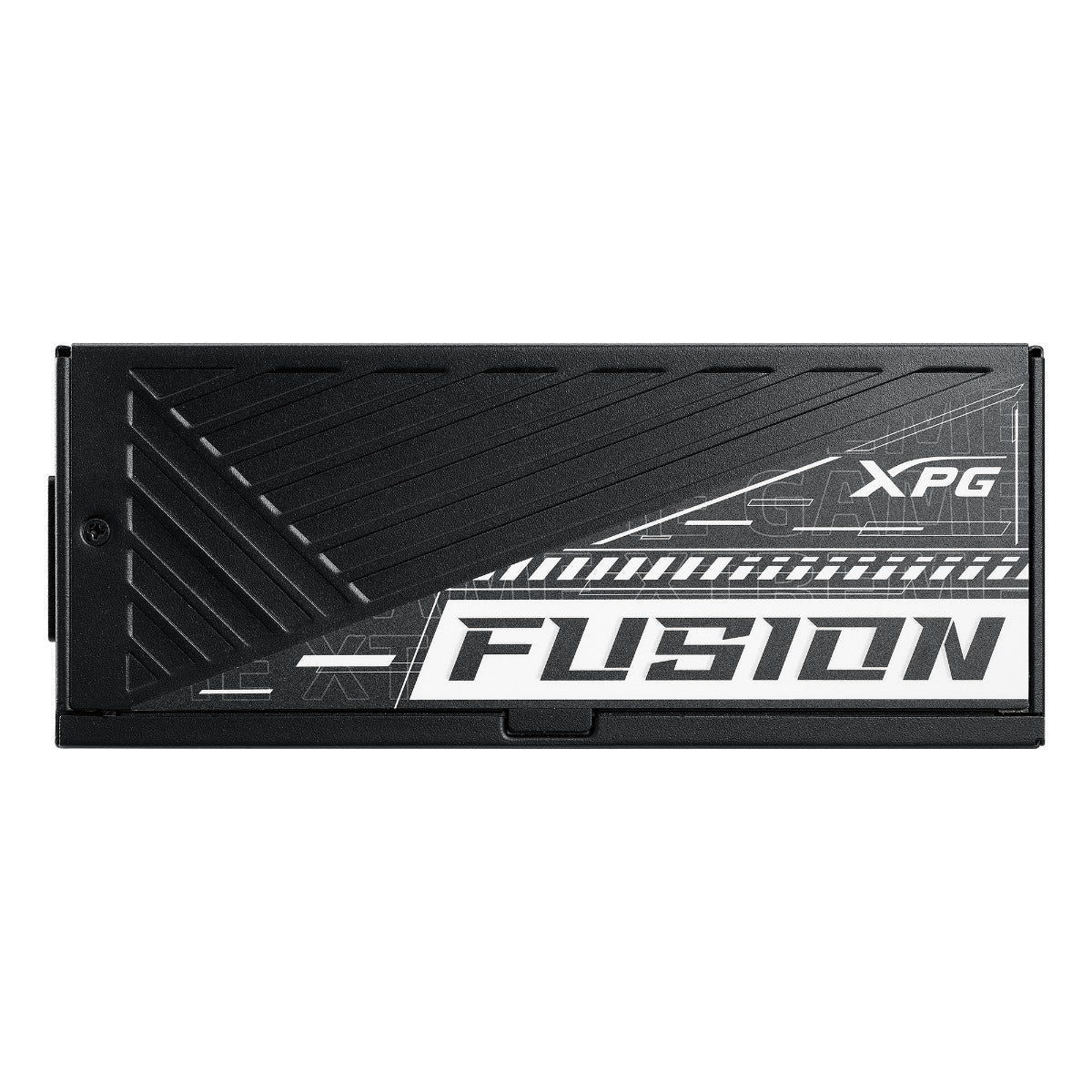

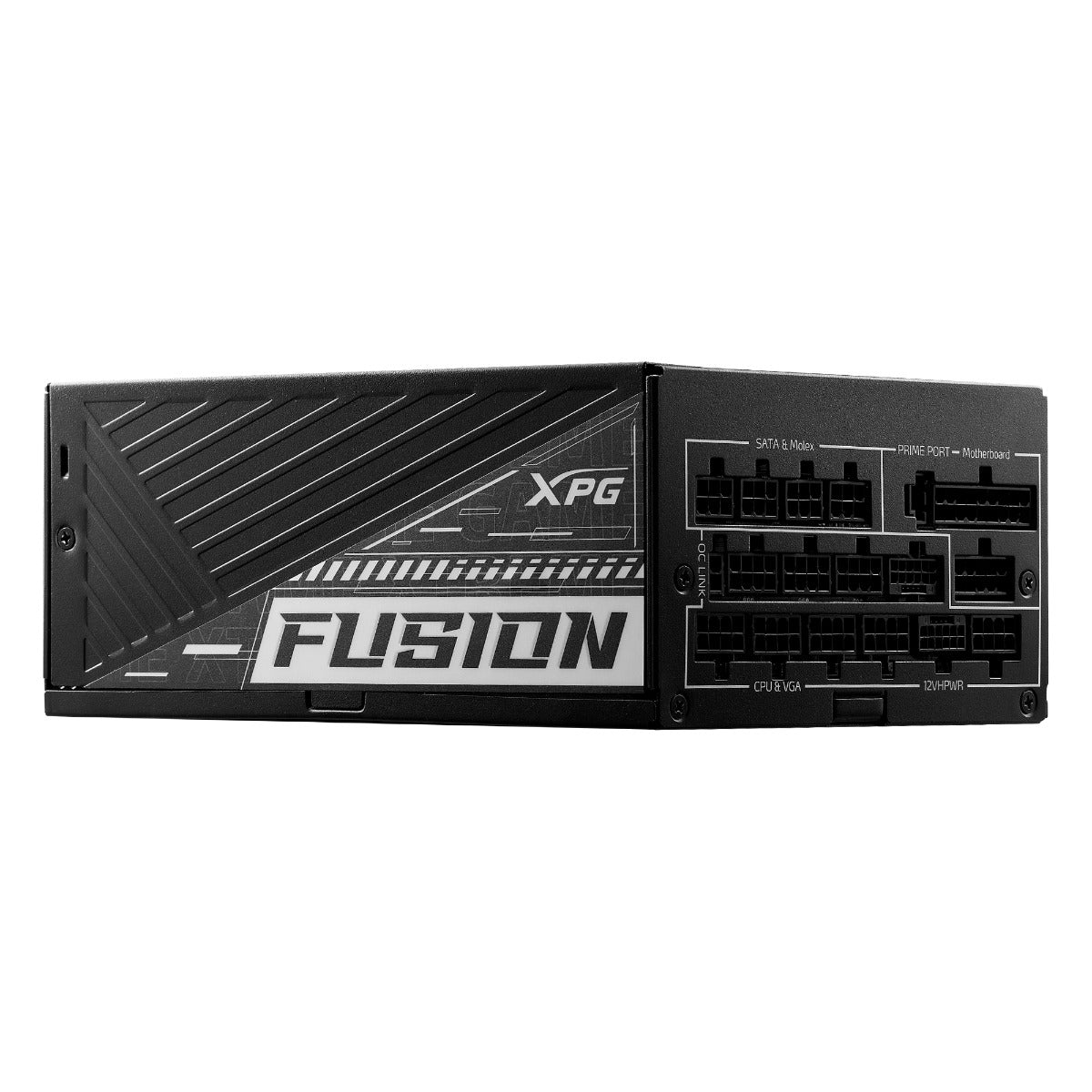

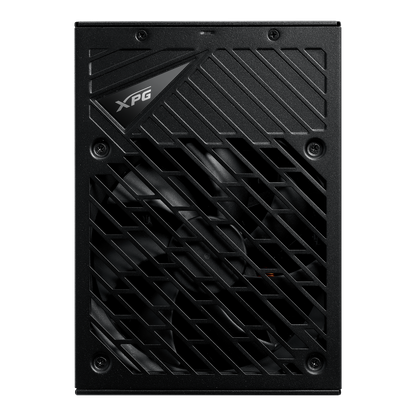

1600W ADATA XPG FUSION 1600 TITANIUM POWER SUPPLY
1600W ADATA XPG FUSION 1600 TITANIUM POWER SUPPLY
SKU:FUSION1600T-BKCAU
Regular price
$691.00
Regular price
Sale price
$691.00
Unit price
per
In stock
Couldn't load pickup availability
-
Description
-
| SPECIFICATIONS & DETAILS | |
| Model Name | |
| FUSION1600T-BKCAU | |
| Specifications | |
| PRODUCT NAME | FUSION 1600 TITANIUM Power Supply |
| DIMENSIONS (L X W X H) | 210 x 150 x 86mm |
| CYBENETICS RATING | TITANIUM |
| 80 PLUS RATING | TITANIUM |
| ATX VERSION | ATX 3.0 |
| PROTECTIONS | OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP |
| CERTIFICATION | CE | CB | FCC (IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | CQC | EAC |
| PFC | > 0.99 |
| INPUT VOLTAGE | 115-240V |
| INPUT CURRENT | 15A | 8A |
| INPUT FREQUENCY | 47Hz-63Hz |
| DC OUTPUT VOLTAGE | +5V | +3.3V | +12V | -12V | +5Vsb |
| TOTAL OUTPUT | 1600W |
| POWER EXCURSION | 3760W (*up to 235% of the PSU's rated power for 100μs) |
| OPERATING TEMPERATURE | 50°C |

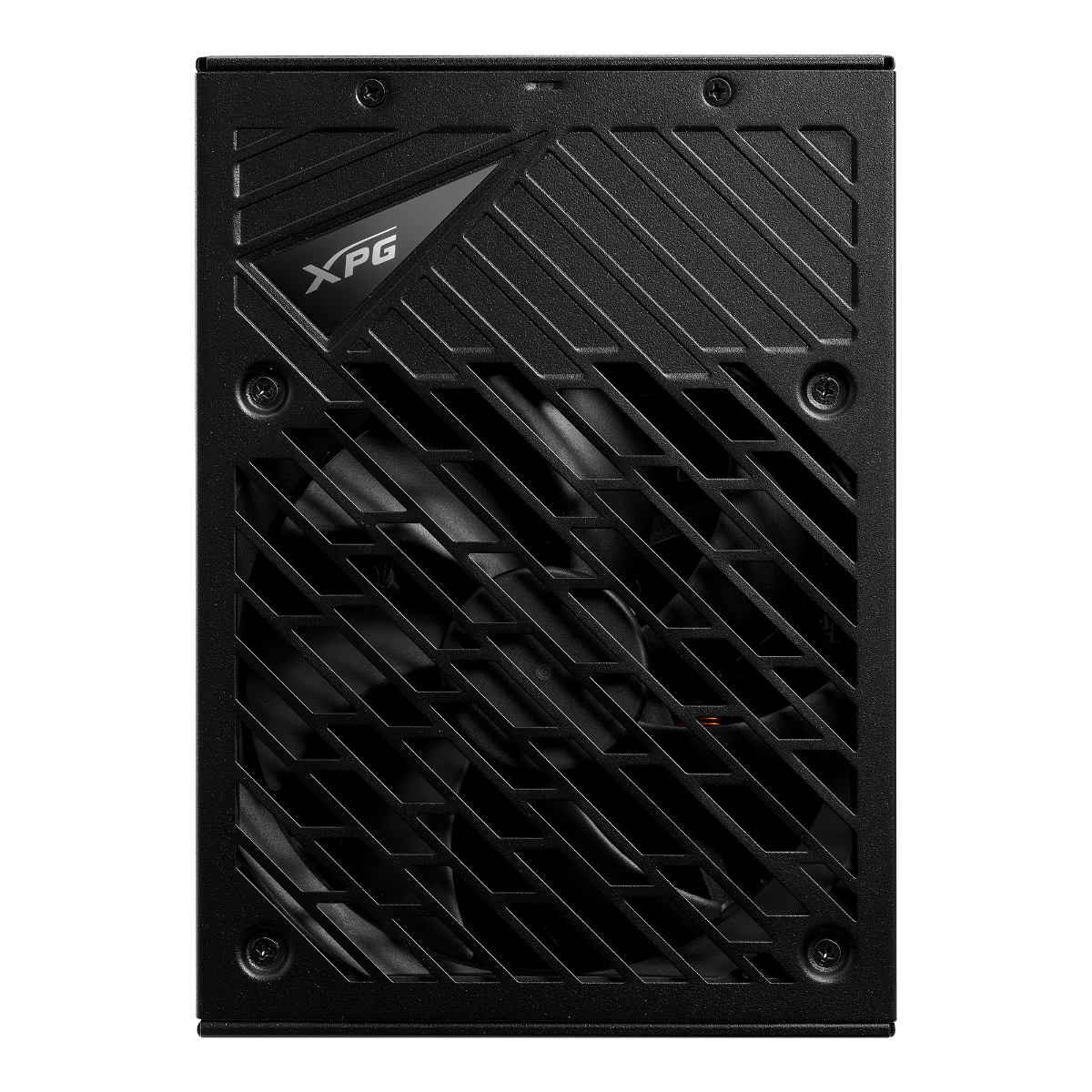

| FAN SIZE | 135 x 135 x 25mm |
| FAN BEARING | Double Ball Bearing |
| FAN SPEED | 2700 ± 10% RPM |
| MTBF | 125,000 hours @ 25°C |

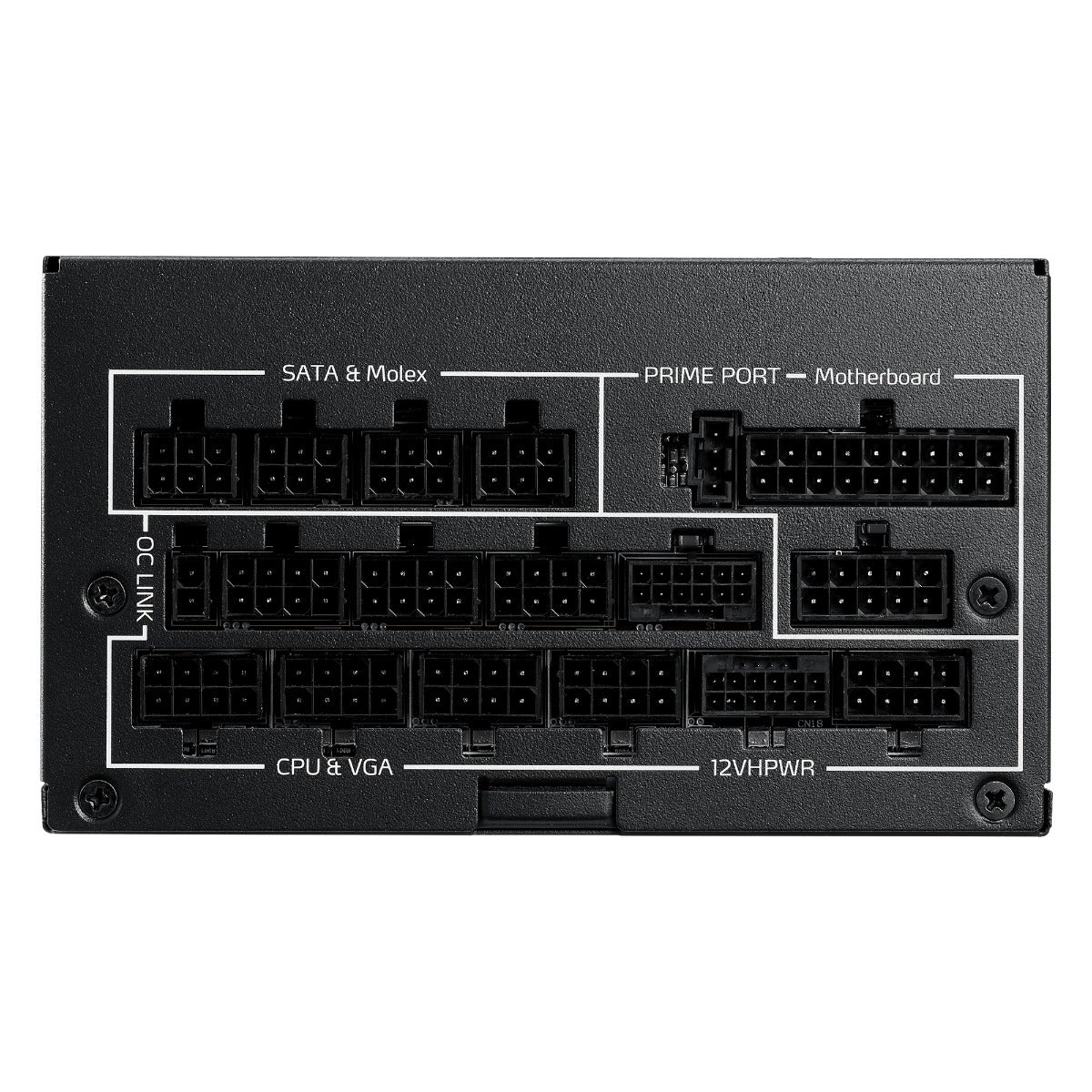

| ATX 24 PIN CONNECTOR | 1 |
| EPS 8 PIN CONNECTOR | 2 |
| PCI-E 6+2 PIN CONNECTOR | 10 |
| MOLEX 4 PIN CONNECTOR | 4 |
| 12V-2X6 (12+4) CONNECTOR (600W) | 2 |
| SATA CONNECTOR | 12 |
| WEIGHT | Product + cables：2.5kg + 1.84kg (5.51lb+4.06lb) ±5% |
| WARRANTY | 12 Years |
| FLOPPY 4 PIN CONNECTOR | 1 |
