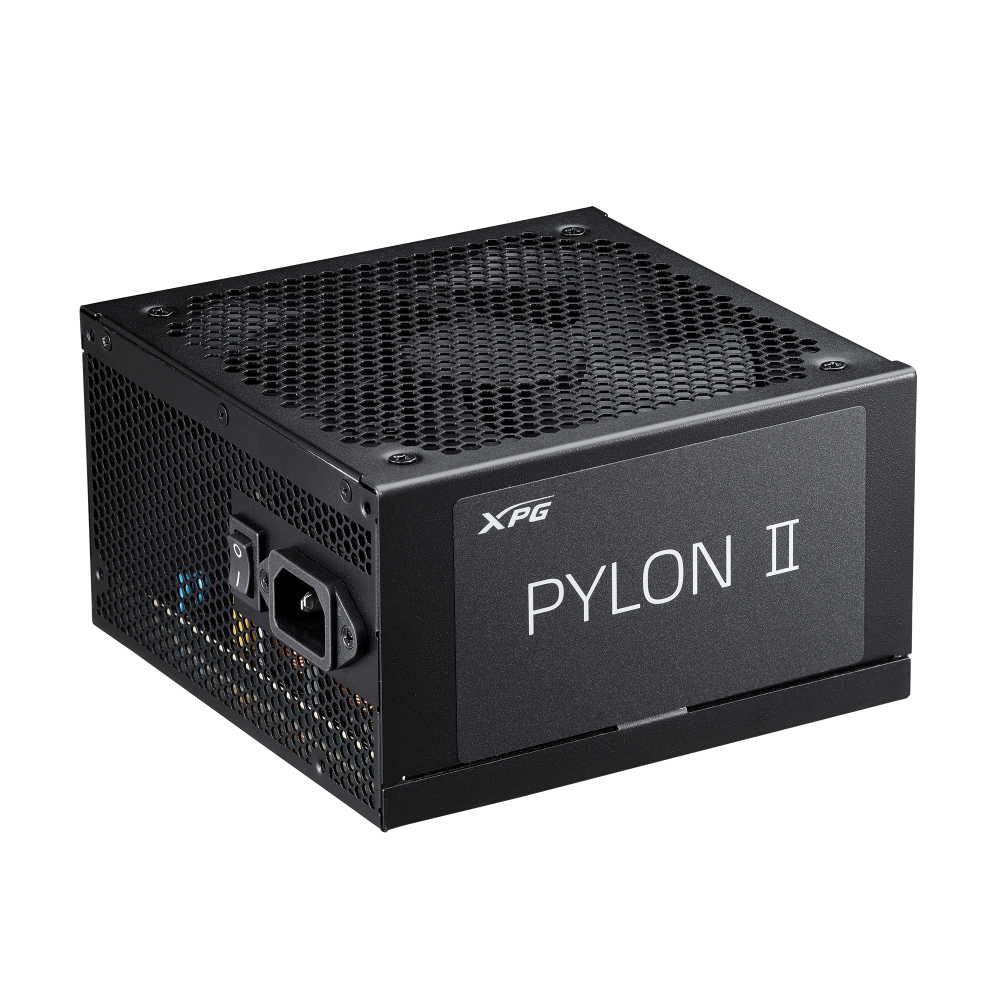

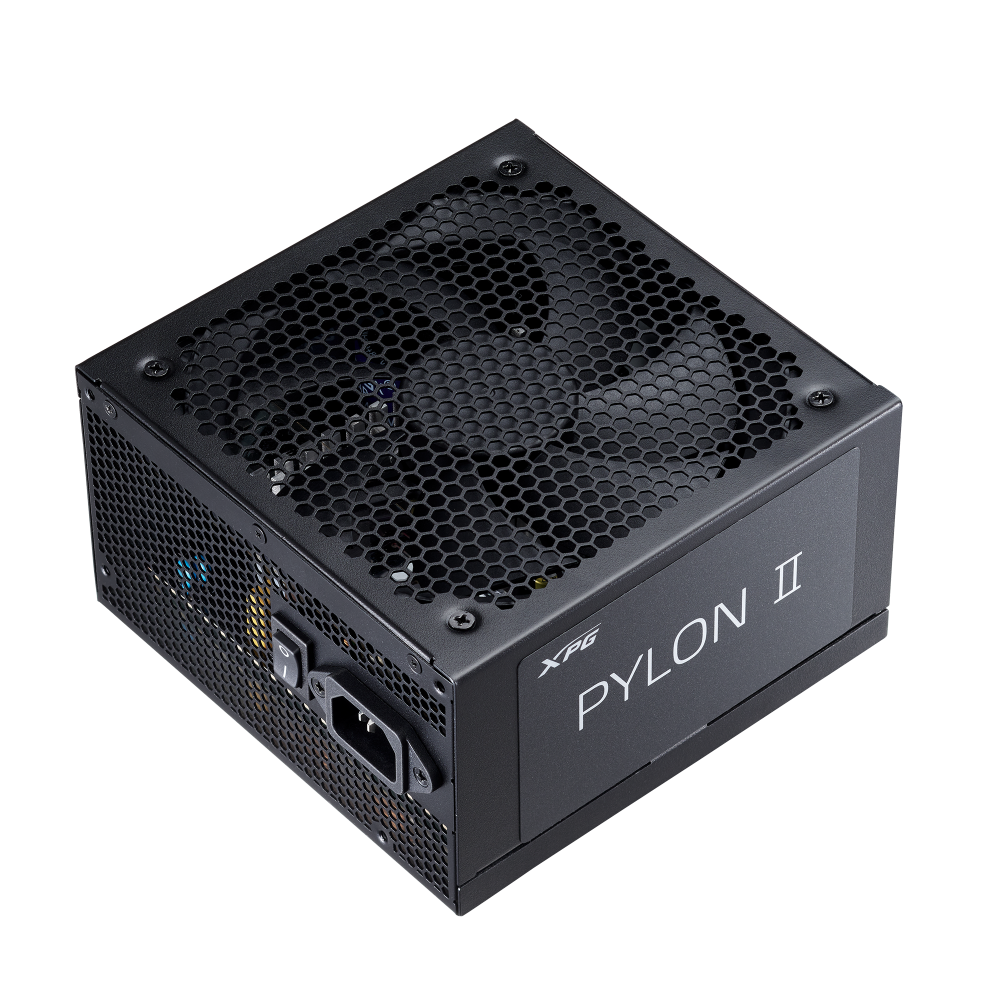

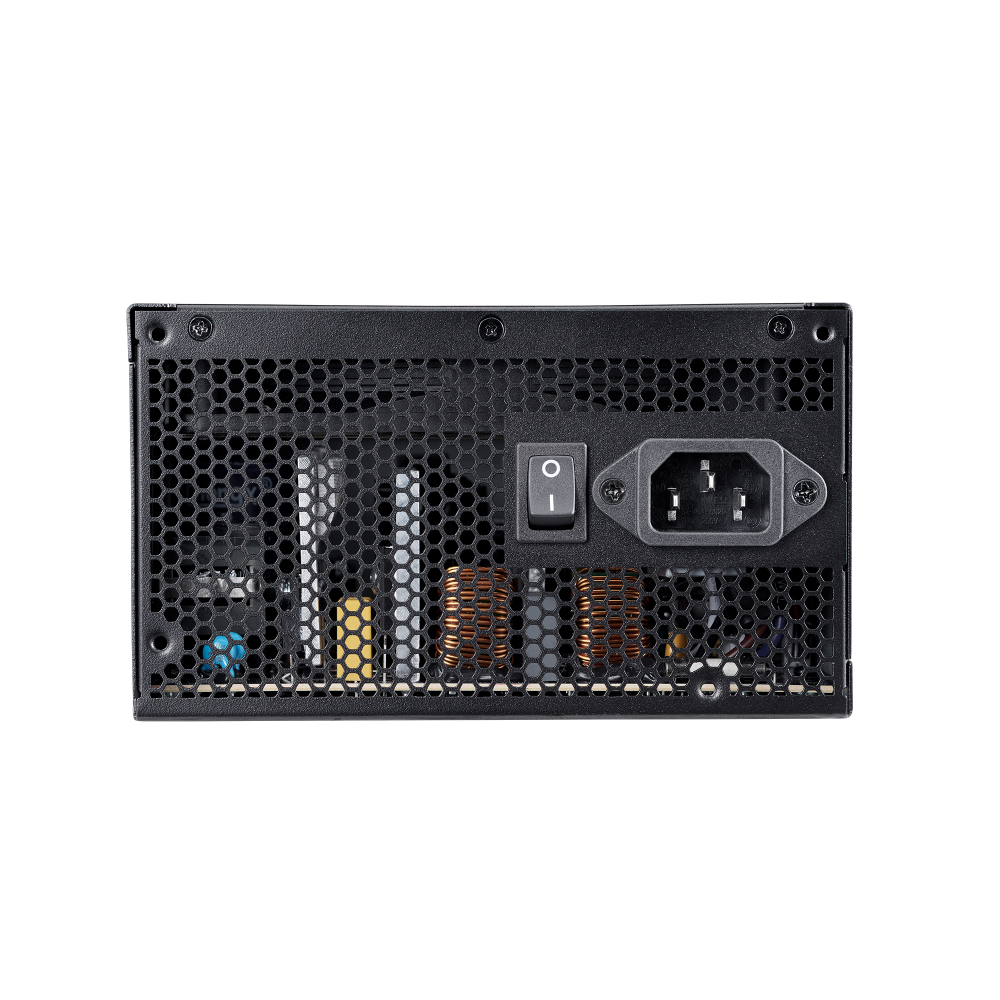

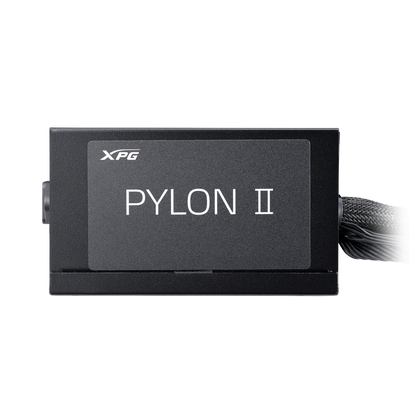

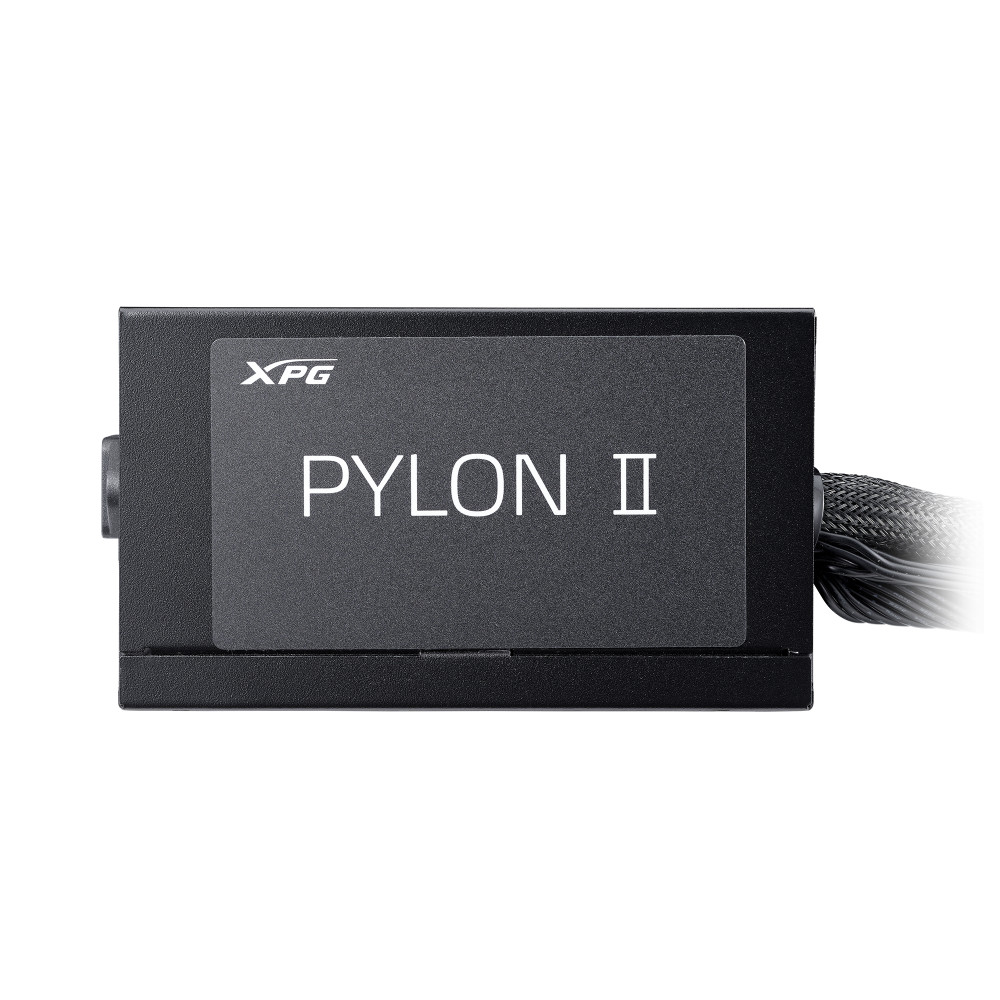

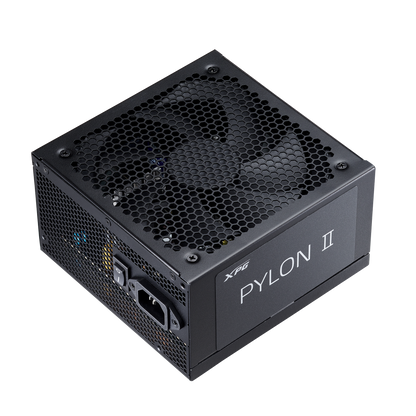

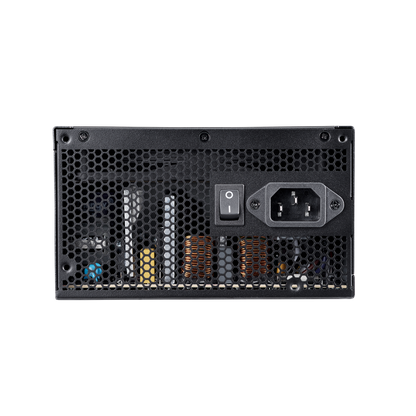

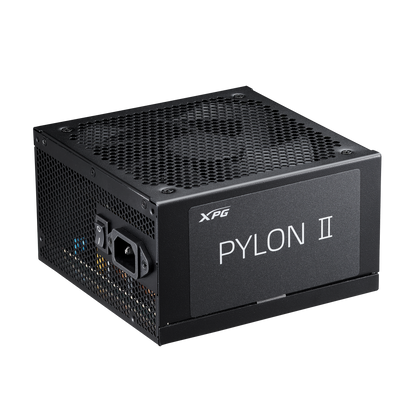

650W ADATA XPG PYLON II POWER SUPPLY
650W ADATA XPG PYLON II POWER SUPPLY
SKU:PYLONII650B-BKCAU
Regular price
$61.00
Regular price
Sale price
$61.00
Unit price
per
Out of stock
Couldn't load pickup availability
-
Description
-
| Model | PYLONII650B-BKCAU |
| Dimensions (L x W x H) | 150 x 150 x 86 mm |
| 80 Plus Rating | BRONZE |
| ATX Version | Intel ATX v3.1 |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| PFC | 0.99 |
| Input Voltage | 100-240V |
| Input Current | 10A |
| Input Frequency | 50-60Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output | 650W: +5V/+3.3V: 20A, +12V: 54A, -12V: 0.3A, +5Vsb: 3A |
| Power Excursion | 650W: 1527W (up to 235% of PSU’s rated power for 100µs) |
| Operating Temperature | 50°C |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 2300±10 RPM |
| MTBF | 100,000 hours at 25℃ |
| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| Molex 4 Pin Connector | 2 |
| 12V-2x6 / 12VHPWR Connectors (450W) | 1 |
| SATA Connector | 6 |
| Weight | 1.8 kg |
| Warranty | 5 Years |
