750W ADATA XPG CORE CREATOR II POWER SUPPLY
750W ADATA XPG CORE CREATOR II POWER SUPPLY
SKU:COREREACTORII750G-BKCAU
Regular price
$138.00
Regular price
Sale price
$138.00
Unit price
per
In stock
Couldn't load pickup availability
-
Description
-
| Dimensions (L x W x H) | 650W–850W: 140 x 150 x 86mm 1000W–1200W: 160 x 150 x 86mm |
| 80 Plus Rating | GOLD |
| ATX Version | ATX 3.0 |
| Protections | OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP |
| Certifications | CE, CB, FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM |
| PFC | > 0.99 |
| Input Voltage | 100–240V |
| Input Frequency | 47Hz–63Hz (all models) |
| Operating Temperature | 50°C |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 2400 RPM |
| MTBF | 100K hours at full load |
| Warranty | 10 Years |
| Fan Size by Wattage | |
| Wattage | Fan Size |
| 650W–850W | 120mm FDB Fan |
| 1000W–1200W | 135mm FDB Fan |
| Input Current by Wattage | |
| Wattage | Input Current |
| 1200W | 15A |
| 1000W | 13A |
| 850W | 12A |
| 750W | 10A |
| 650W | 10A |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output by Wattage | ||||
| Wattage | +5V/+3.3V | +12V | -12V | +5Vsb |
| 1200W | 22A | 100A | 0.3A | 3A |
| 1000W | 22A | 83.5A | 0.3A | 3A |
| 850W | 22A | 70.8A | 0.3A | 3A |
| 750W | 22A | 62.5A | 0.3A | 3A |
| 650W | 20A | 54.1A | 0.3A | 3A |
| Power Excursion (235% Peak for 100μs) | |
| Wattage | Peak Power |
| 1200W | 2820W |
| 1000W | 2350W |
| 850W | 1997W |
| 750W | 1762W |
| 650W | 1527W |

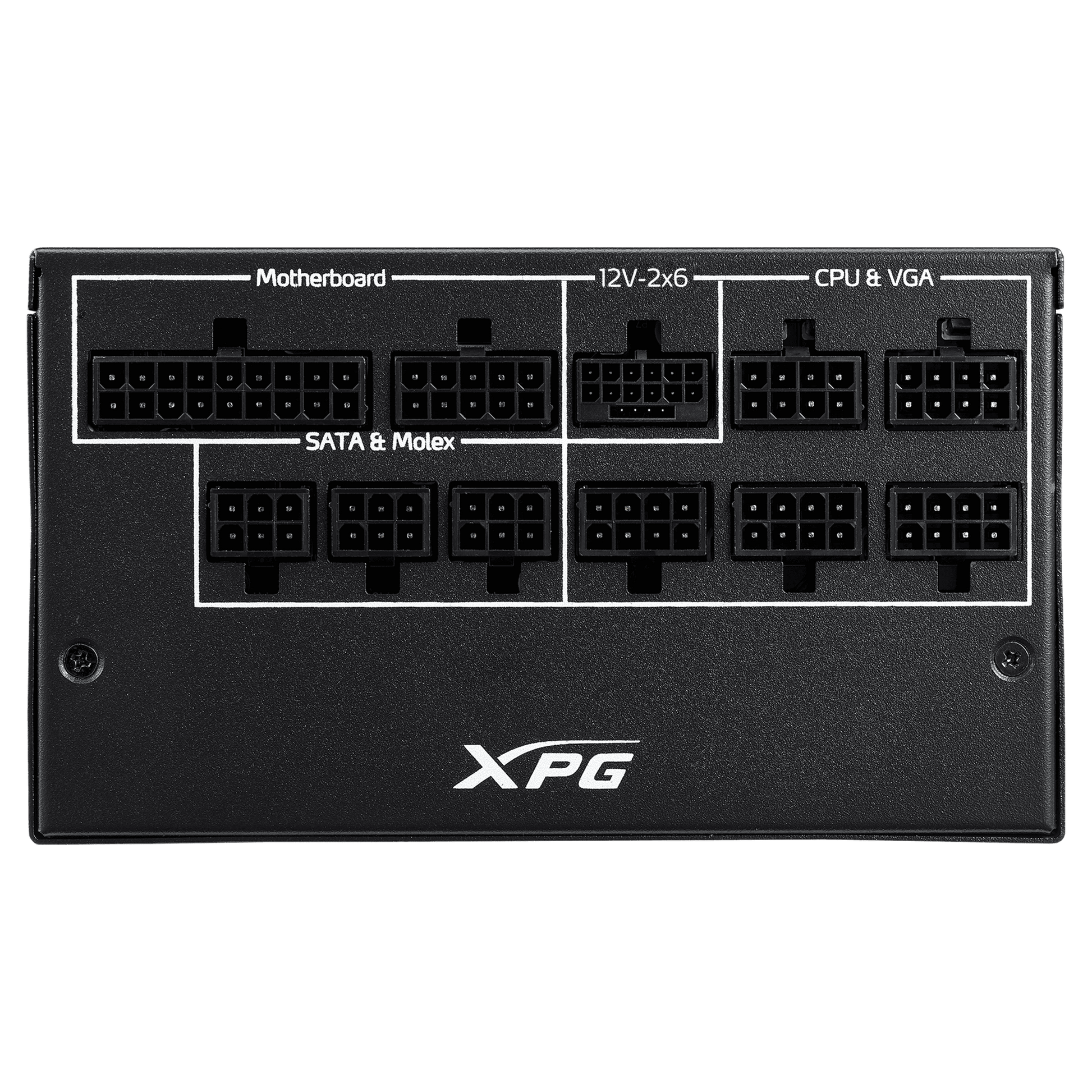

| Connectors by Wattage | |||
| Connector Type | 1200W/1000W | 850W/750W | 650W |
| ATX 24 Pin | 1 | 1 | 1 |
| EPS 8 Pin | 2 | 2 | 2 |
| PCI-E 6+2 Pin | 8 | 6 | 4 |
| Molex 4 Pin | 3 | 4 | 4 |
| 12V-2x6 / 12VHPWR (600W) | 1 | 1 | – |
| 12V-2x6 / 12VHPWR (450W) | – | – | 1 |
| SATA | 9 | 8 | 8 |
| Weight (Product + Cables / With Package) | ||
| Wattage | Product + Cables | With Package |
| 1200W/1000W | 1.77kg + 1.28kg | 3.43kg |
| 850W/750W | 1.596kg + 1.254kg | 3.1kg |
| 650W | 1.299kg + 1.231kg | 2.78kg |
