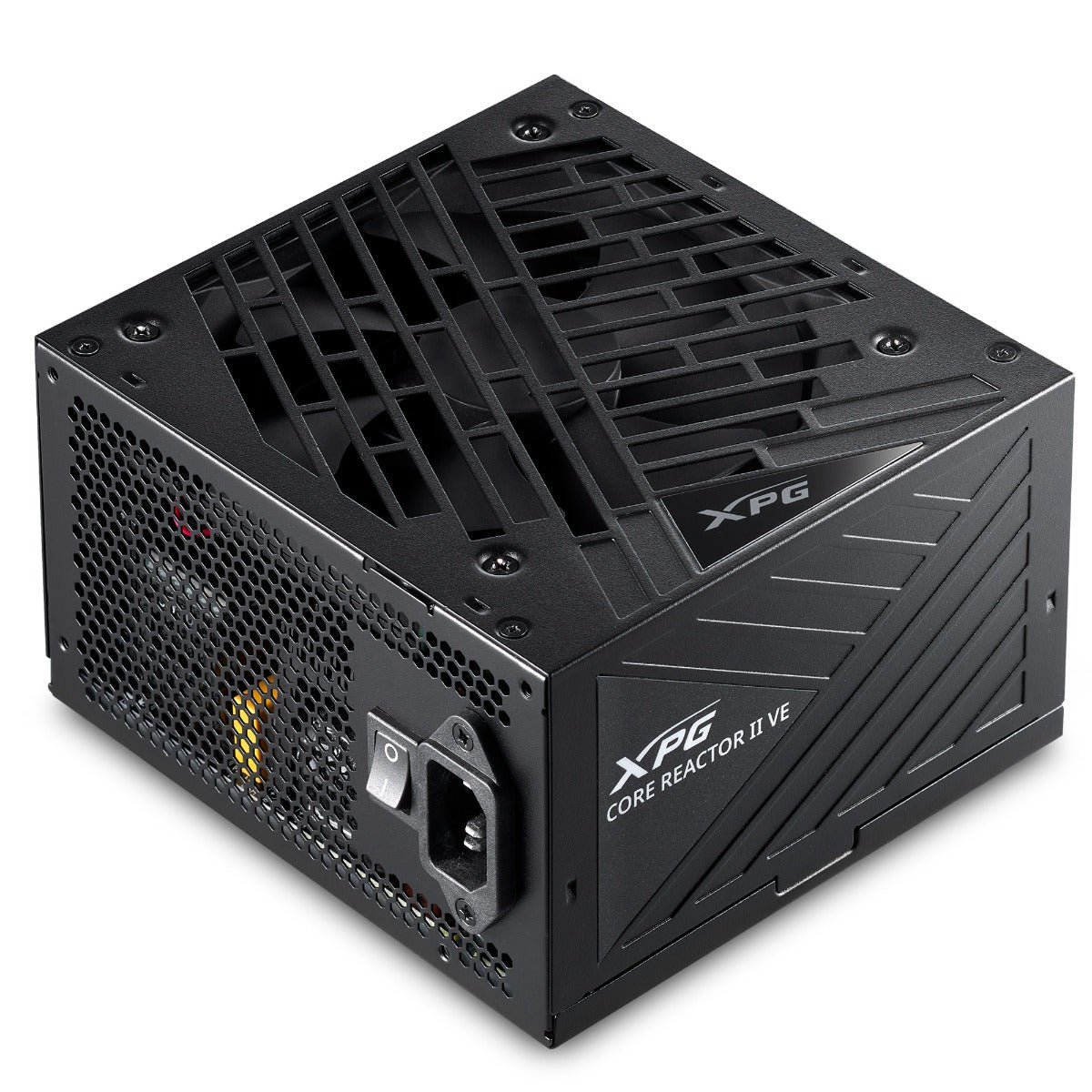

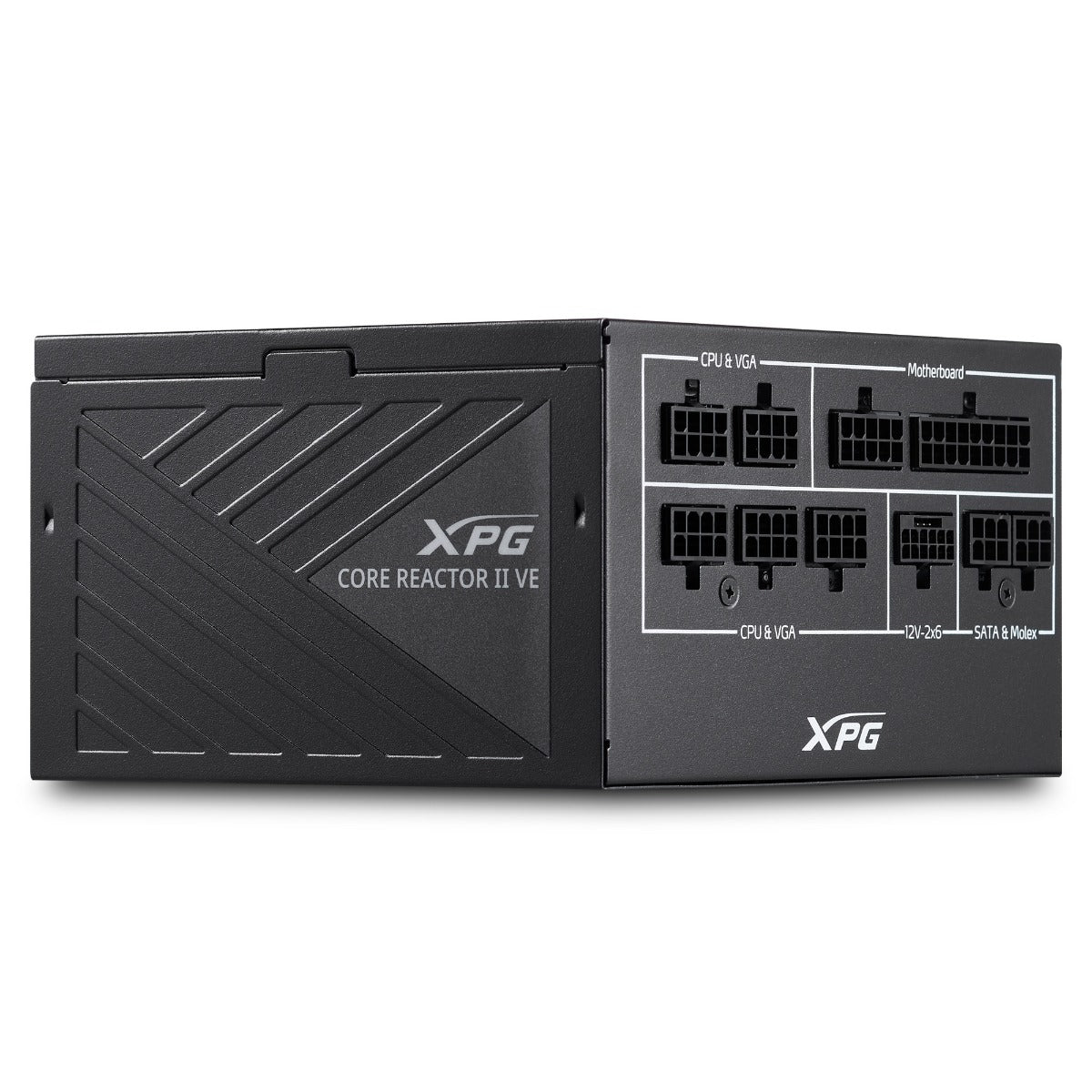

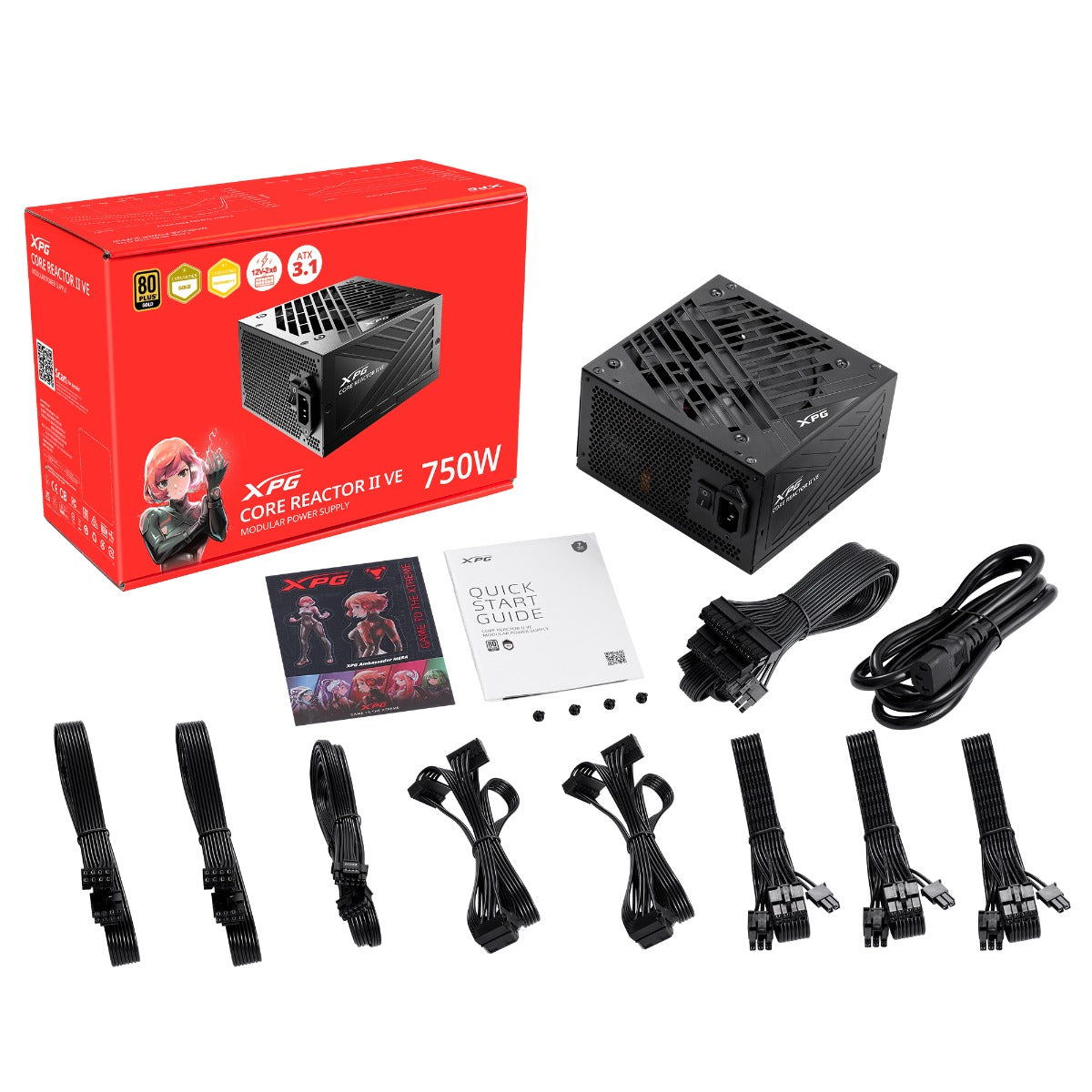

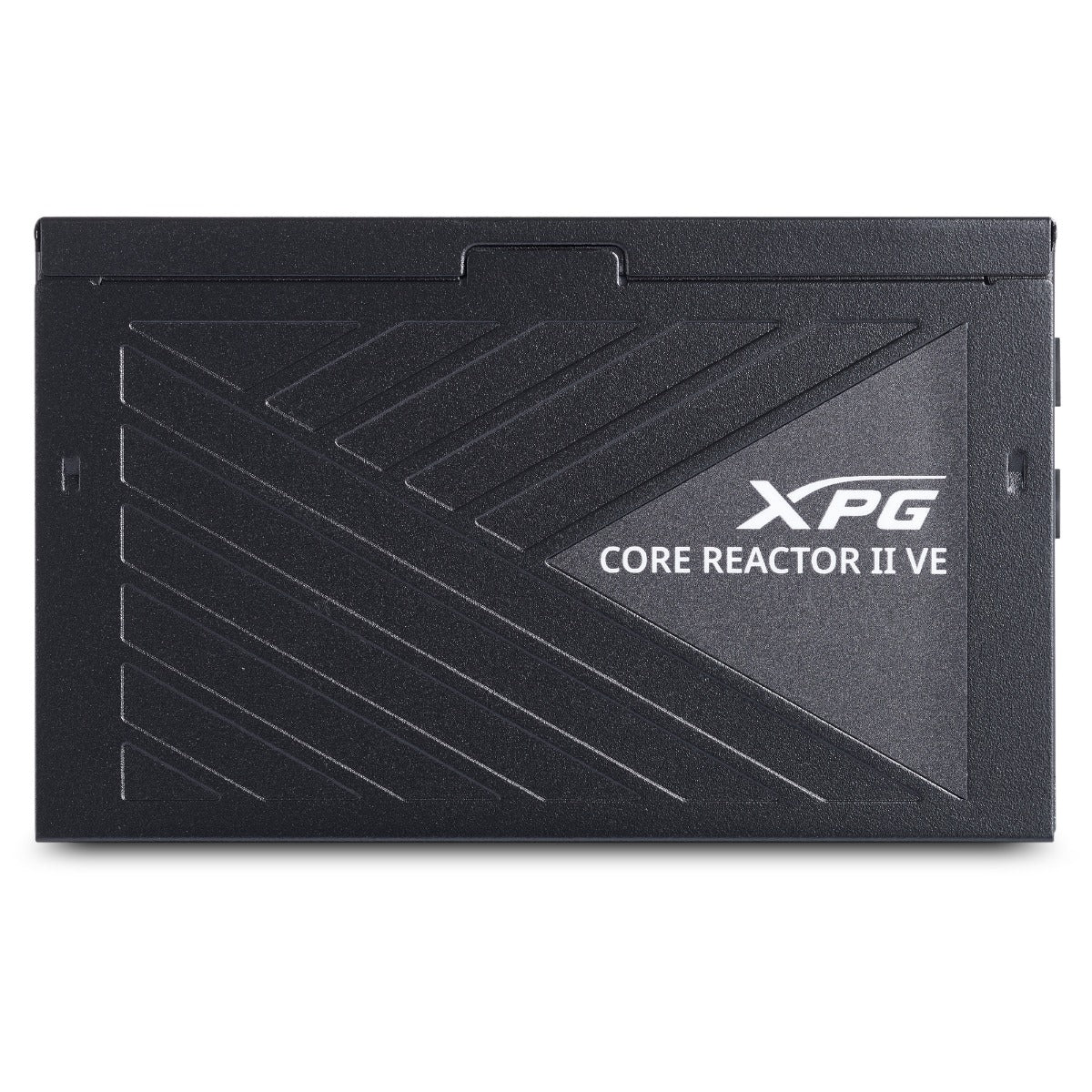

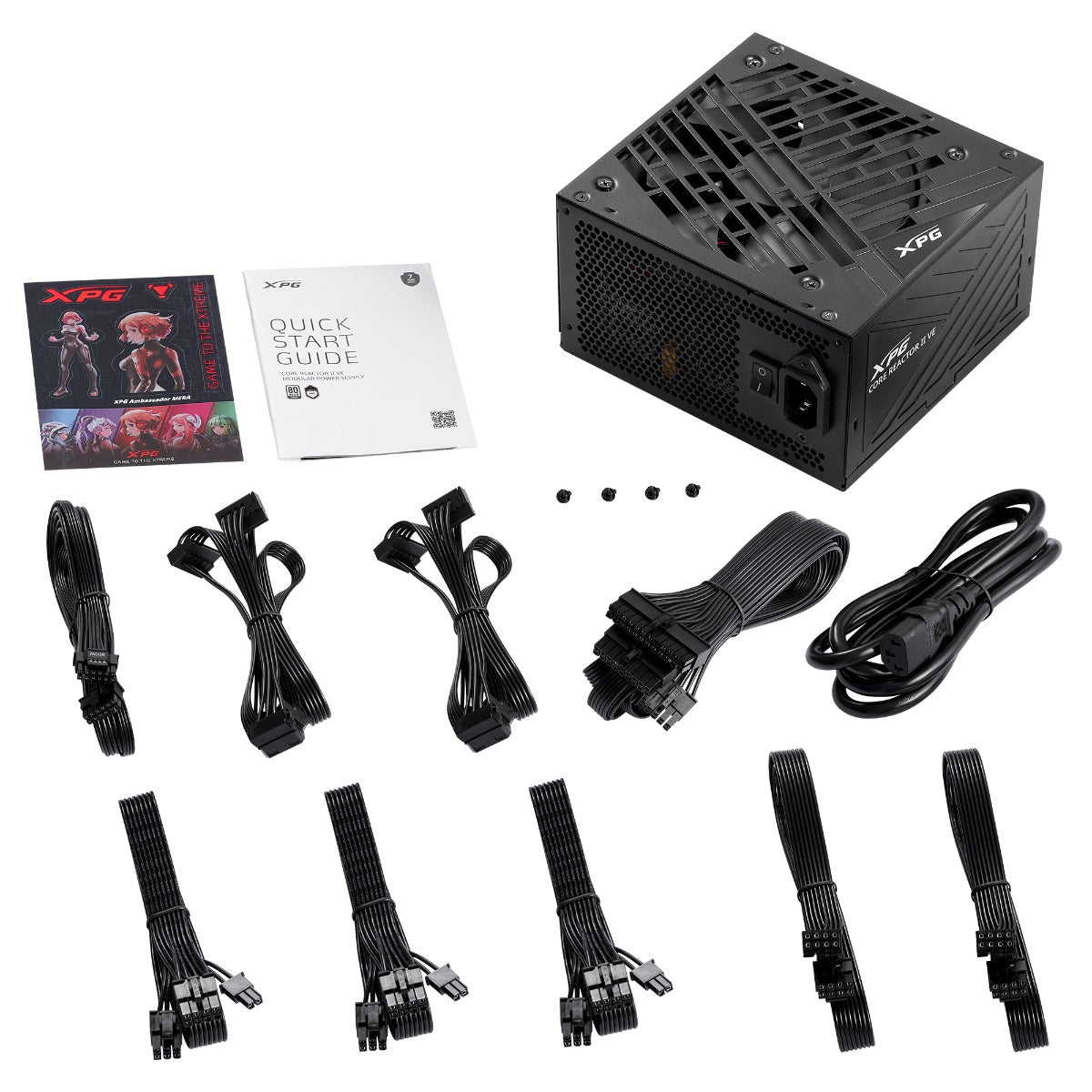

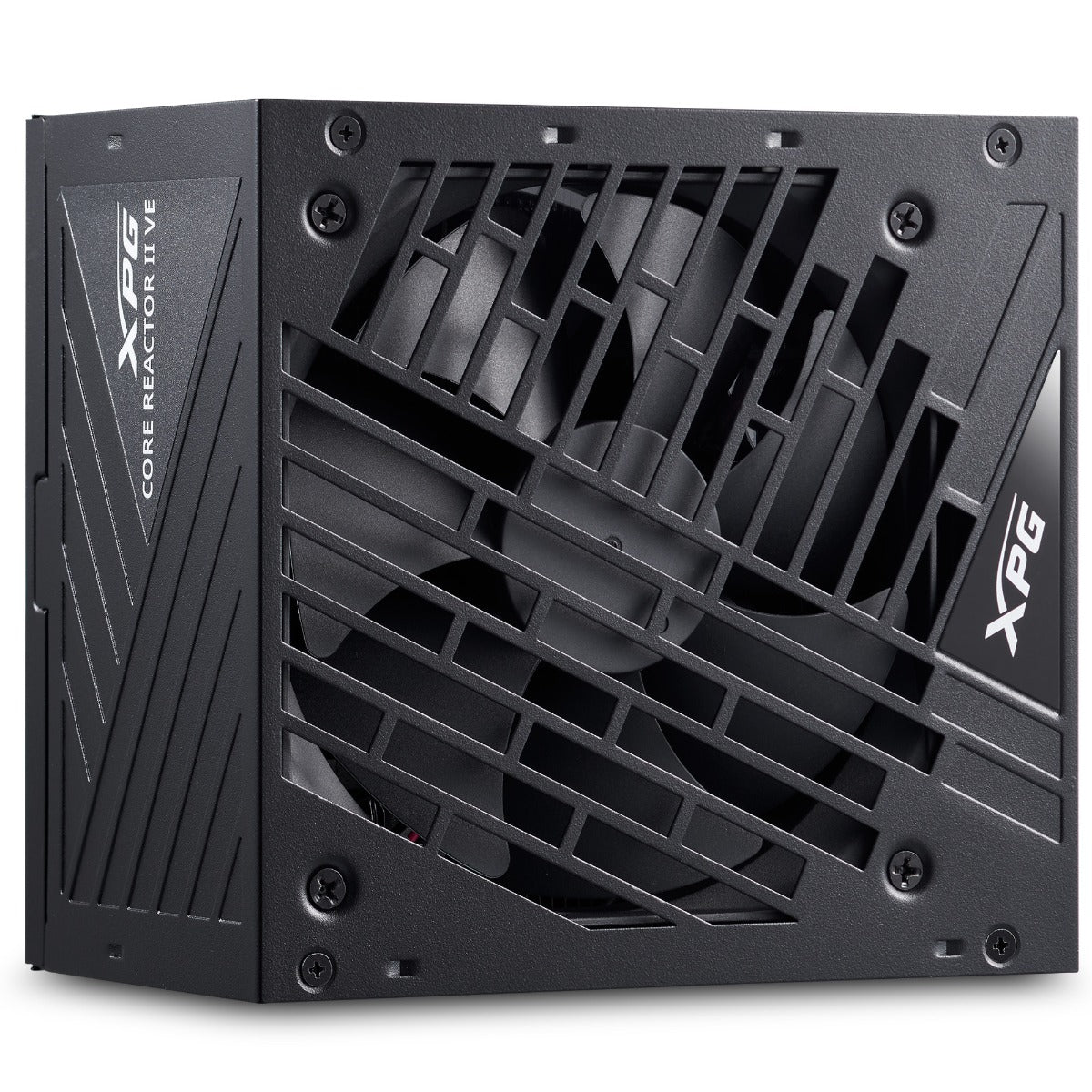

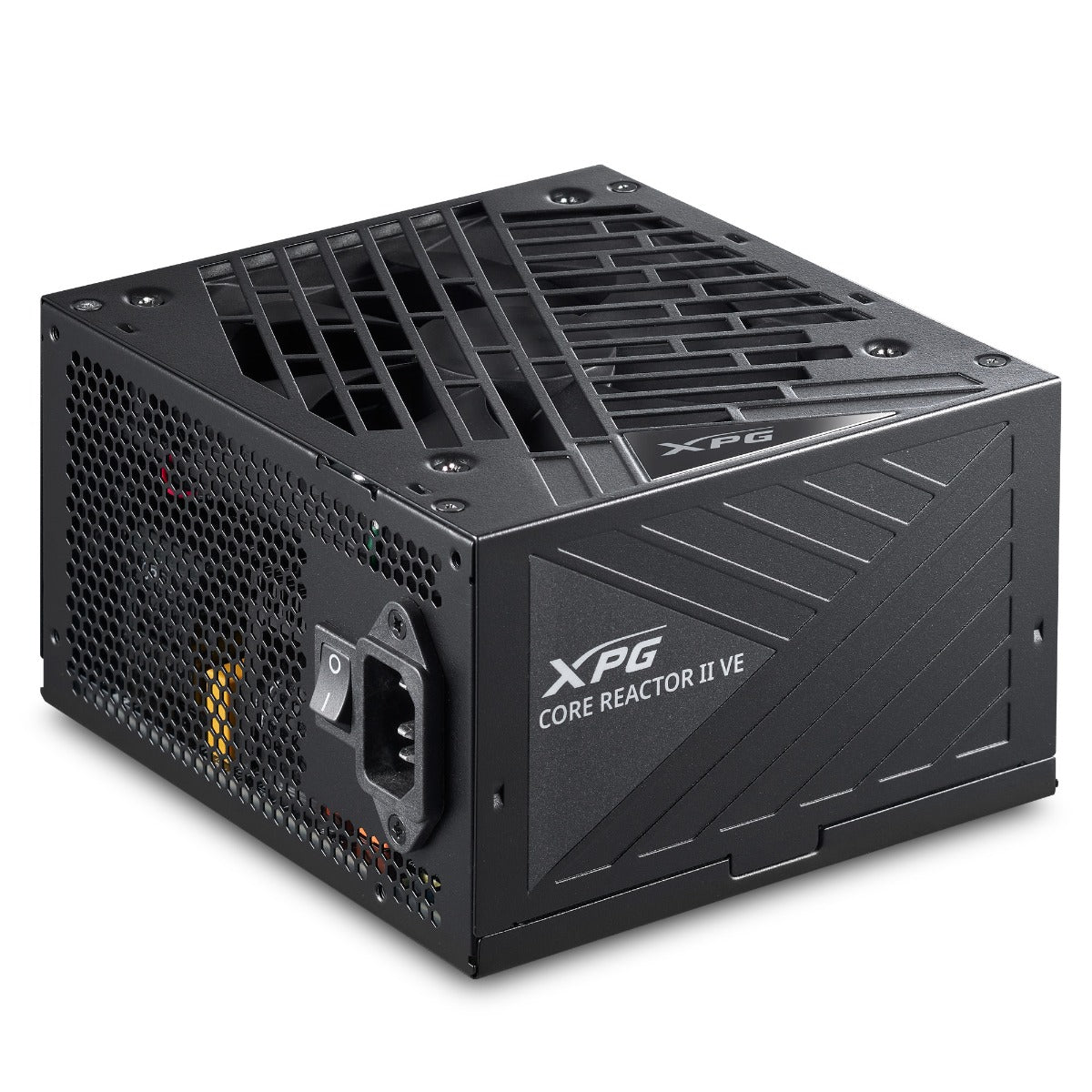

750W ADATA XPG CORE REACTOR II VE POWER SUPPLY
750W ADATA XPG CORE REACTOR II VE POWER SUPPLY
SKU:COREREACTORIIVE750G-BKCAU
Regular price
$136.00
Regular price
Sale price
$136.00
Unit price
per
In stock
Couldn't load pickup availability
-
Description
-
| SPECIFICATIONS & DETAILS | |
| Model Name | |
| COREREACTORIIVE750G-BKCAU | |
| Specifications | |
| PRODUCT NAME | XPG CORE REACTOR II VE |
| DIMENSIONS (L X W X H) | 140 x 150 x 86mm |
| CYBENETICS RATING | GOLD |
| 80 PLUS RATING | GOLD |
| ATX VERSION | Intel ATX 12V v3.0 |
| PROTECTIONS | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| CERTIFICATION | CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus |
| PFC | 0.99 |
| INPUT VOLTAGE | 100-240V |
| INPUT CURRENT | 850W: 12A 750W: 10A 650W: 10A |
| INPUT FREQUENCY | 47Hz-63Hz |
| DC OUTPUT VOLTAGE |
+5V | +3.3V | +12V | -12V | +5Vsb |
| TOTAL OUTPUT | 850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A |
| POWER EXCURSION | 850W: 1997W (*up to 235% of the PSU's rated power for 100μs) 750W: 1762W (*up to 235% of the PSU's rated power for 100μs) 650W: 1527W(*up to 235% of the PSU's rated power for 100μs) |
| OPERATING TEMPERATURE | 40°C |

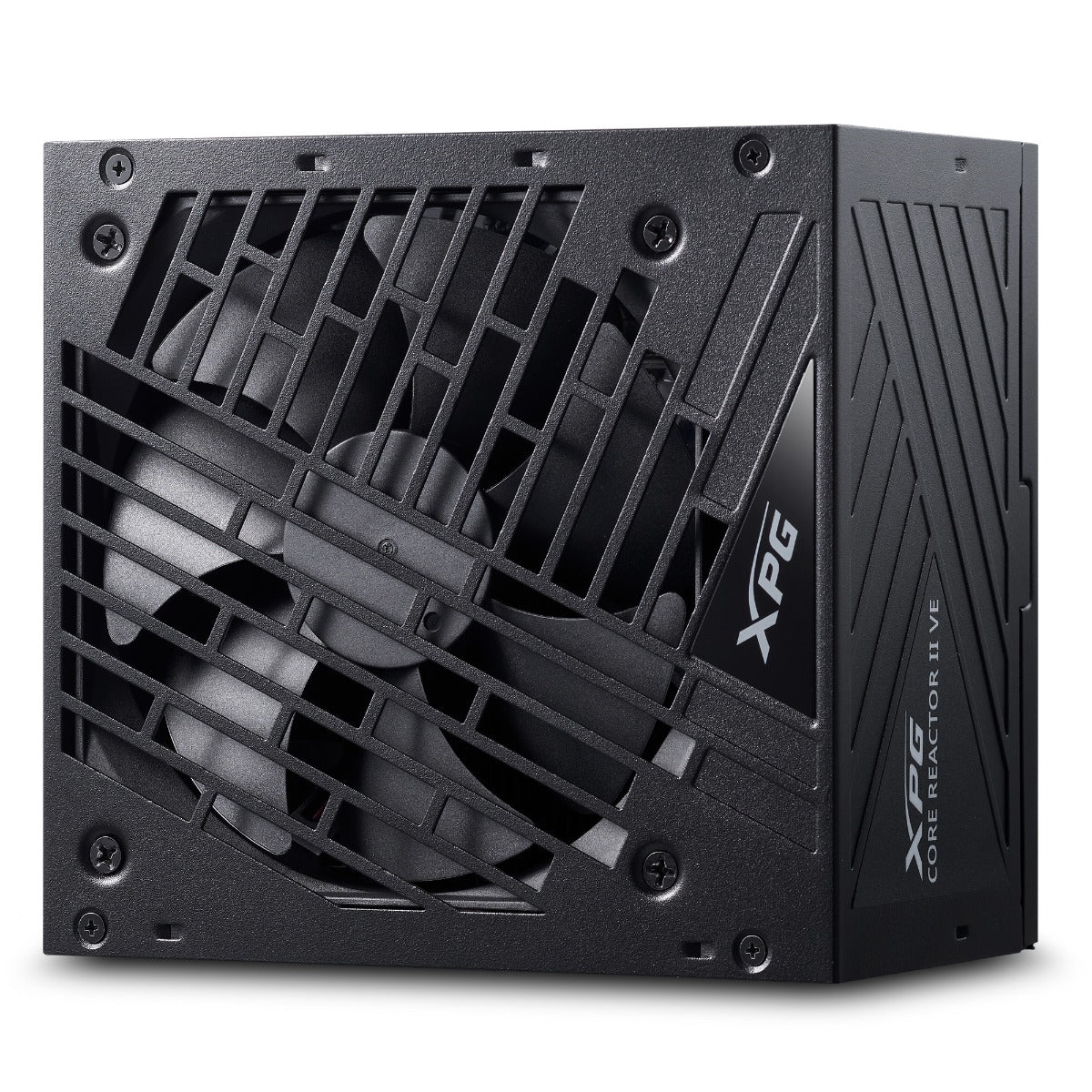

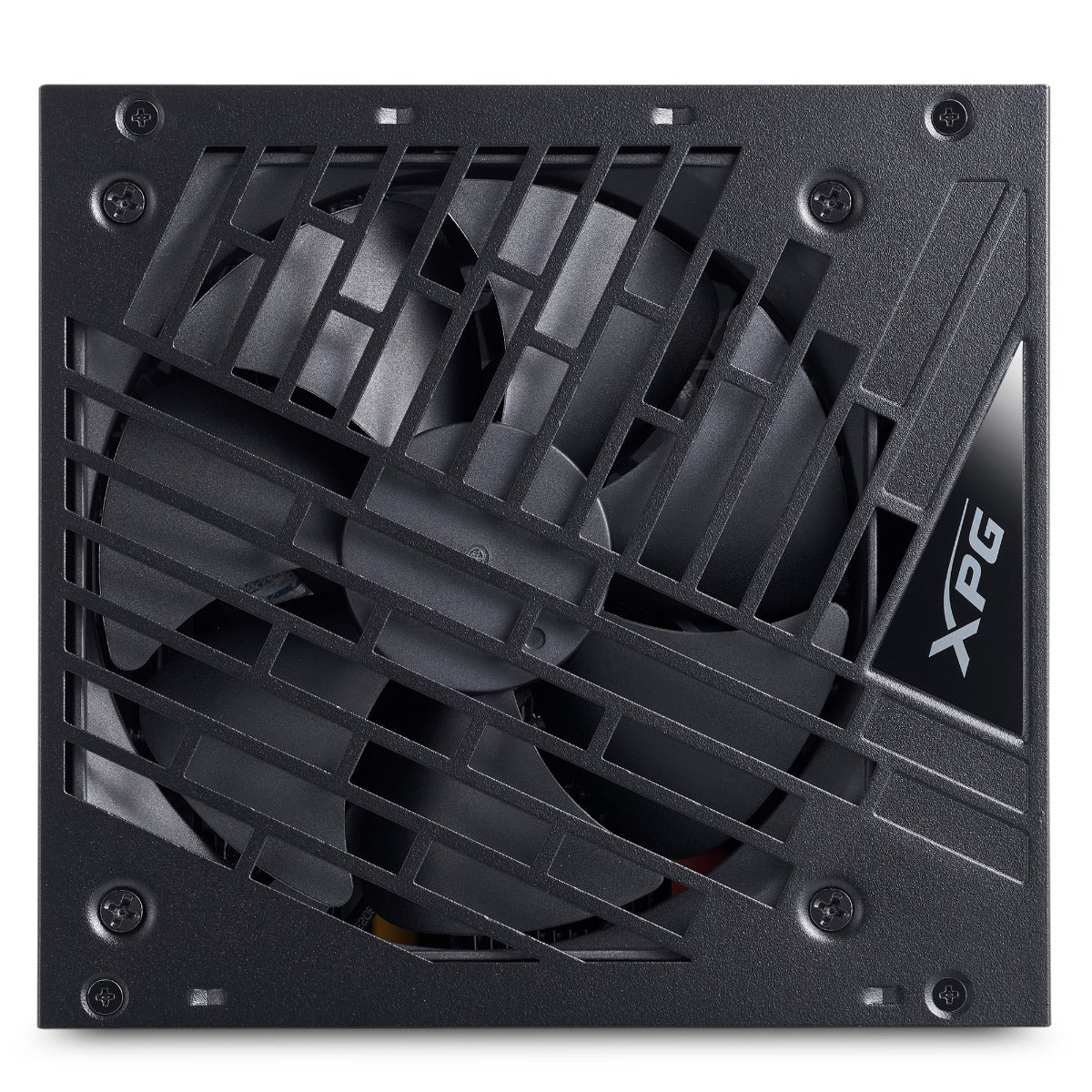

| FAN SIZE | 120mm FDB Fan |
| FAN BEARING | FDB (Fluid Dynamic Bearing) |
| FAN SPEED | 2400 RPM |
| MTBF | 100K hours at full load |

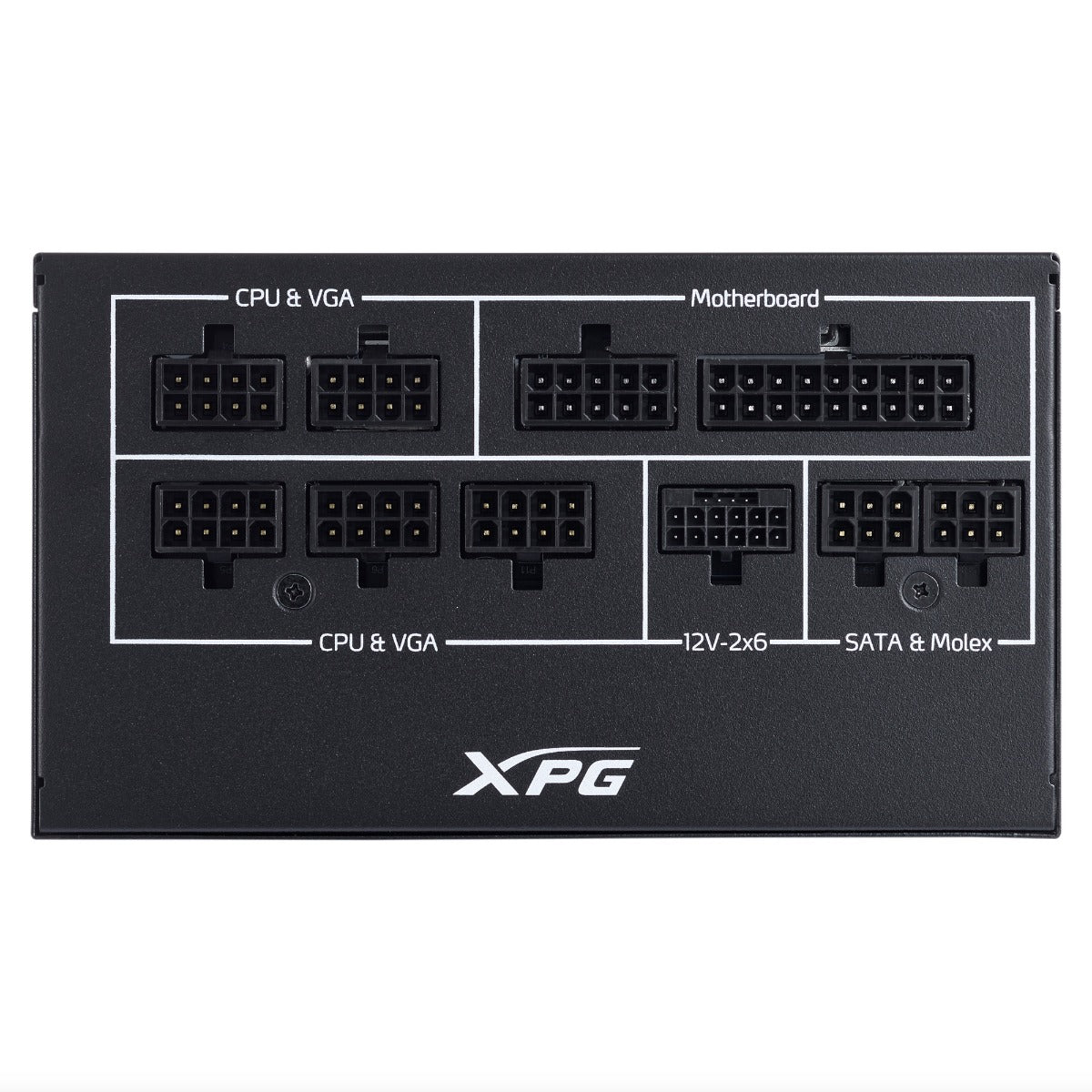

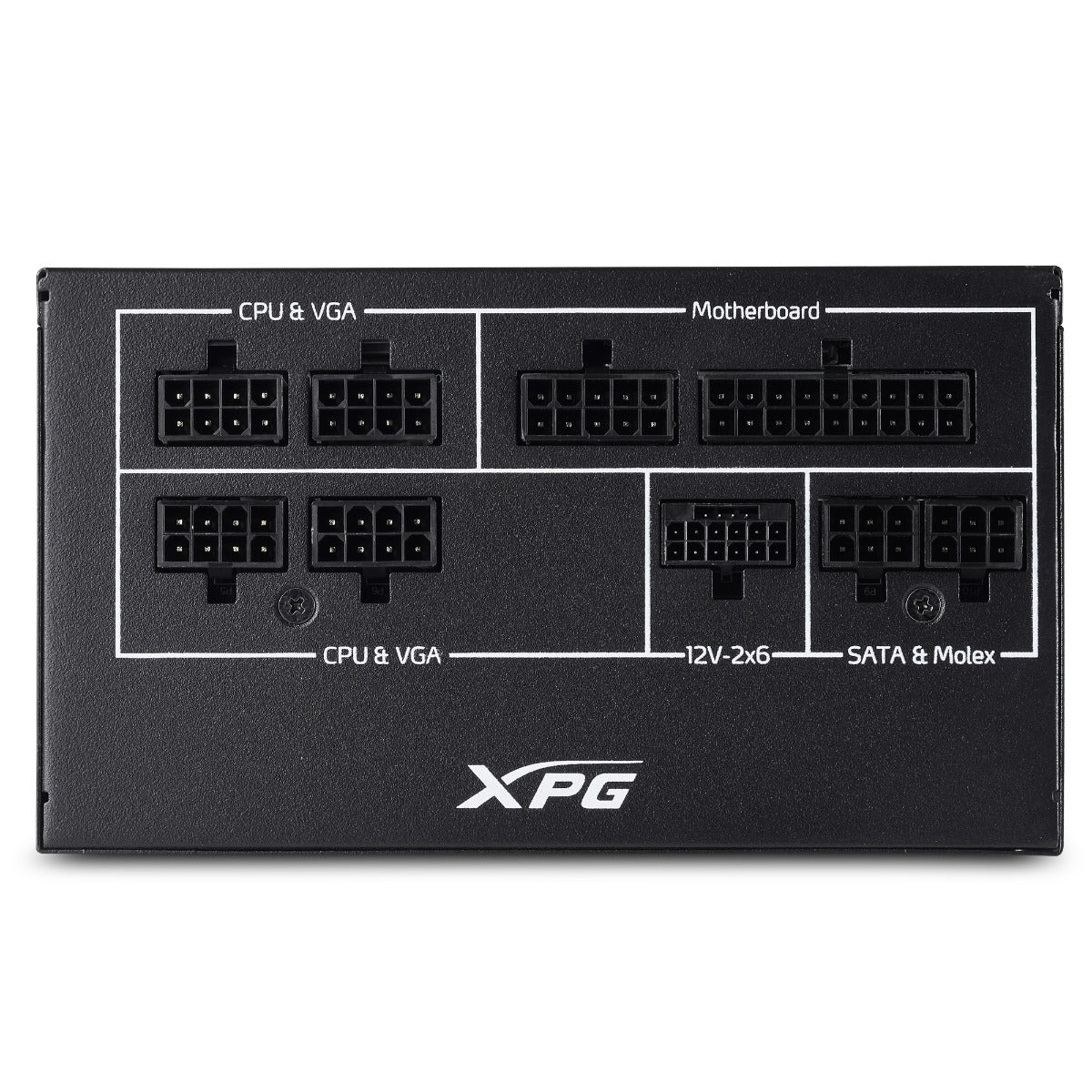

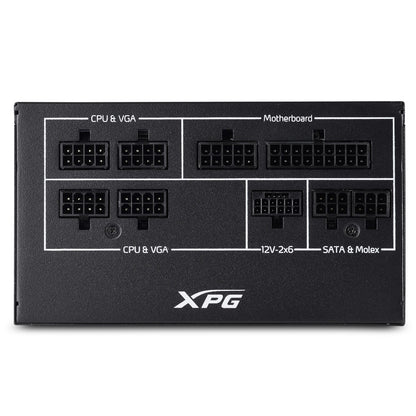

| ATX 24 PIN CONNECTOR | 1 |
| EPS 8 PIN CONNECTOR | 2 |
| PCI-E 6+2 PIN CONNECTOR | 850W / 750W: 3 650W: 2 |
| MOLEX 4 PIN CONNECTOR | 2 |
| 12V-2X6 (12+4) CONNECTOR (600W) | 850W / 750W: 1 |
| 12V-2X6 (12+4) CONNECTOR (450W) | 650W: 1 |
| SATA CONNECTOR | 6 |
| WEIGHT | 850W / 750W: Product + Cables: 1450g+1350g with Package: 3.03kg 650W: Product + Cables: 1450g+1320g with Package: 3kg |
| WARRANTY | 7 years |
