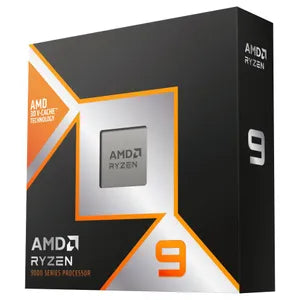

AMD RYZEN 9 9900X3D CPU
AMD RYZEN 9 9900X3D CPU
SKU:100-100001368WOF
Regular price
$1,076.00
Regular price
Sale price
$1,076.00
Unit price
per
Low stock
Couldn't load pickup availability
-
Description
-
| General Information | |
| Model Number | 100-100001368WOF |
| Name | AMD Ryzen™ 9 9900X3D |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| Unlocked for Overclocking | Yes (Warranty does not cover overclocking damage) |
| CPU Socket | AM5 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended |
| Max Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 / 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
| Core Specifications | |
| # of CPU Cores | 12 |
| Multithreading (SMT) | Yes |
| # of Threads | 24 |
| Max. Boost Clock | Up to 5.5 GHz† |
| Base Clock | 4.4 GHz‡ |
| L1 Cache | 960 KB |
| L2 Cache | 12 MB |
| L3 Cache | 128 MB |
| Default TDP | 120W |
| Package Die Count | 3 |
| Memory Support | |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speeds | - 2x1R DDR5-5600 - 2x2R DDR5-5600 - 4x1R DDR5-3600 - 4x2R DDR5-3600 |
| ECC Support | Yes (requires motherboard support) |
| AMD EXPO™ Support | Yes |
| Connectivity & Expansion | |
| Native USB 3.2 Gen 2 Ports | 4 (10 Gbps) |
| Native USB 2.0 Ports | 1 (480 Mbps) |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes | 28 total / 24 usable |
| NVMe Support | Boot, RAID 0/1/5/10 |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alt Mode | Yes |
| Advanced Technologies | |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Boost Technology | Precision Boost 2 |
