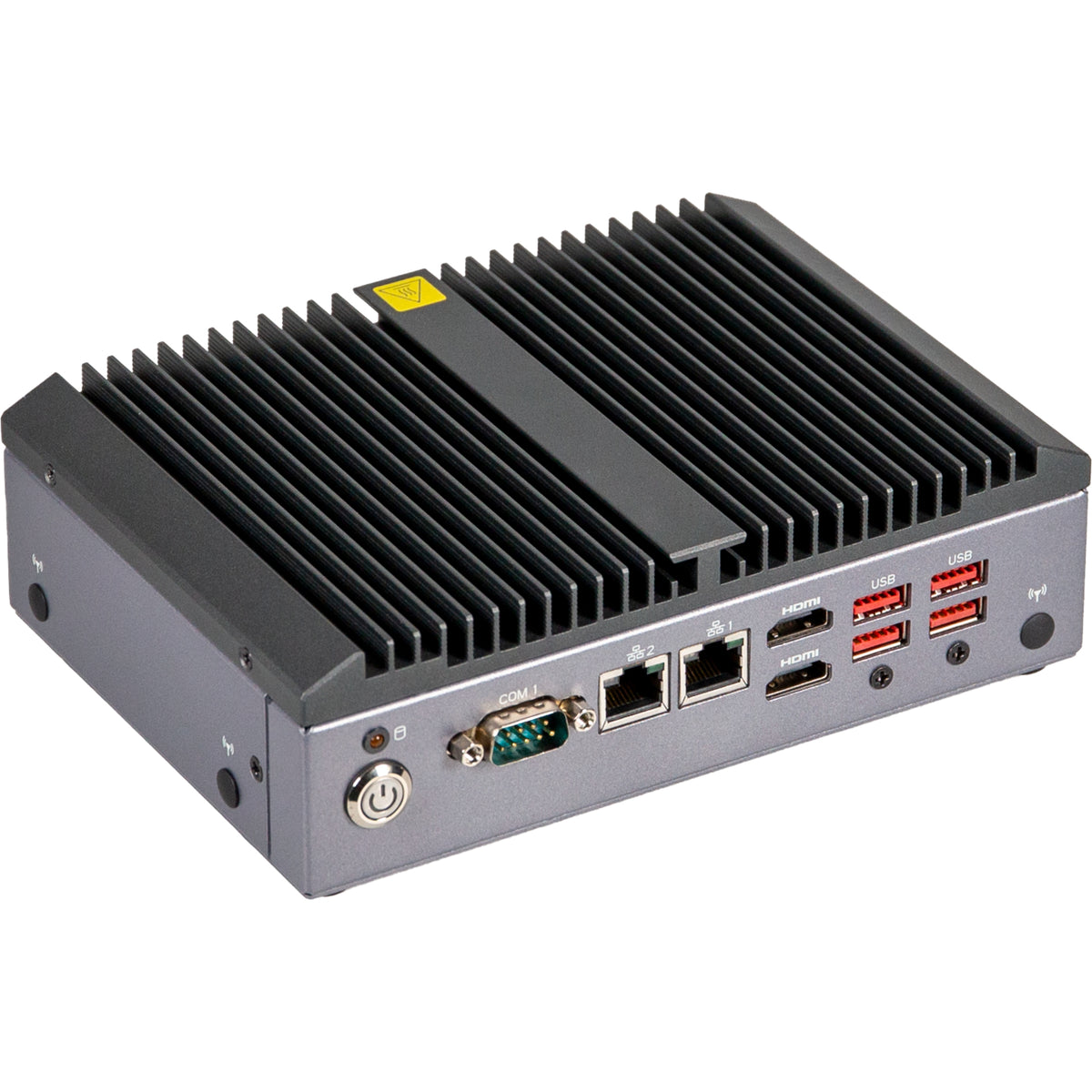

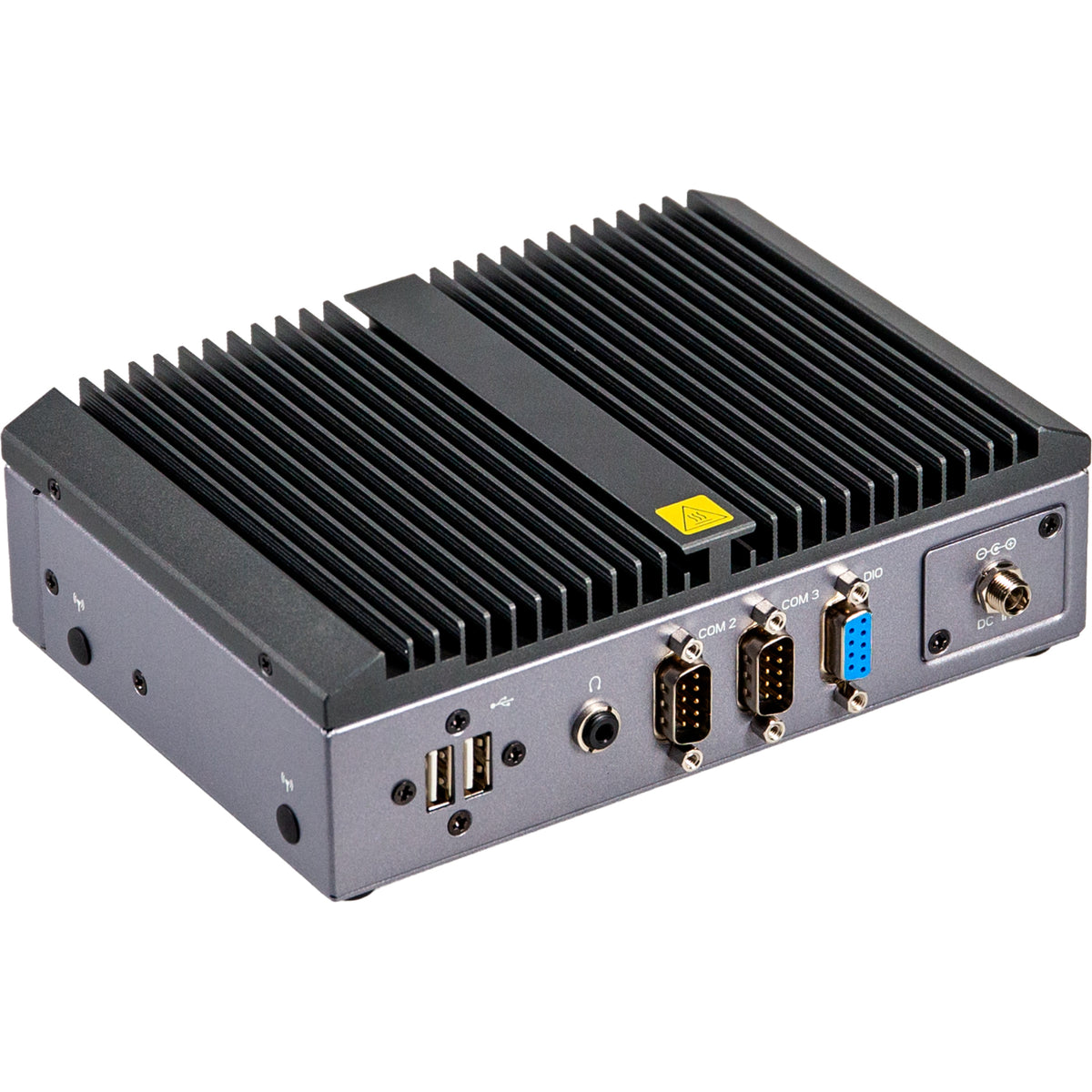

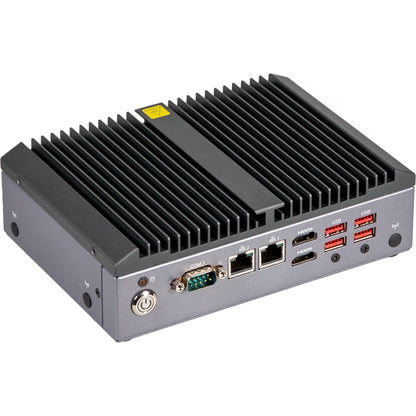

Gigabyte QBiX Series Embedded IPC Barebone (Model QBiX-Pro-RPLA1335H-A2)
Gigabyte QBiX Series Embedded IPC Barebone (Model QBiX-Pro-RPLA1335H-A2)
SKU:6BQP1335AMR-SI-5NBA
Regular price
$1,740.00
Regular price
Sale price
$1,740.00
Unit price
per
Out of stock
Couldn't load pickup availability
-
Description
-
| Dimensions (W x D x H) | 178W x 125D x 52.7H(mm) |
| Processor | Intel® Core™ i5-1335U Processor Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x 2.5GbE LAN Ports (Intel® I226V) |
| Graphics | Integrated Graphics Processor - Intel® Iris® Xe Graphics : 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Audio | Realtek® ALC269 |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| M.2 M-Key | 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot |
| Front I/O | 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 2 x HDMI 1 x Power button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x External Antenna Hole (Optional) |
| Rear I/O | 2 x USB 2.0 2 x COM Ports (RS-232/422/485) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x Screw Type DC Jack |
| Side I/O | 2 x External Antenna Holes (Optional) |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9672VU2.0 |
| DC Input | 12V~19VDC (Adapter 19.5V/135W) |
| Single Box Size | 313 x 191 x 95 (mm) |
| Single Box Weight | Approx. 3kg |
