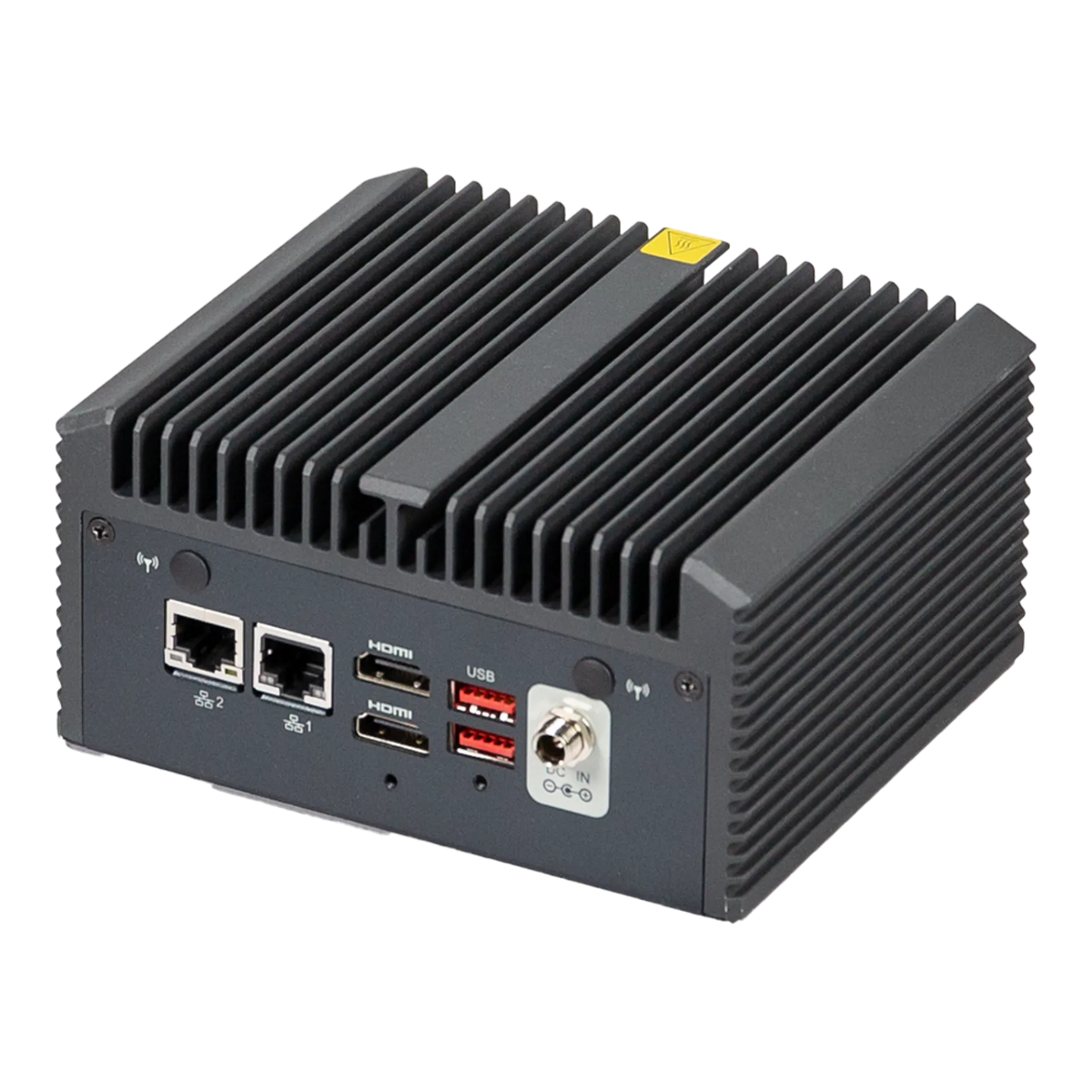

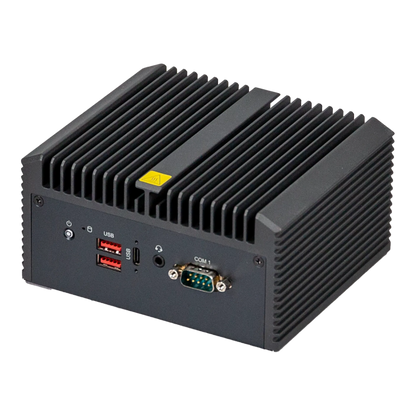

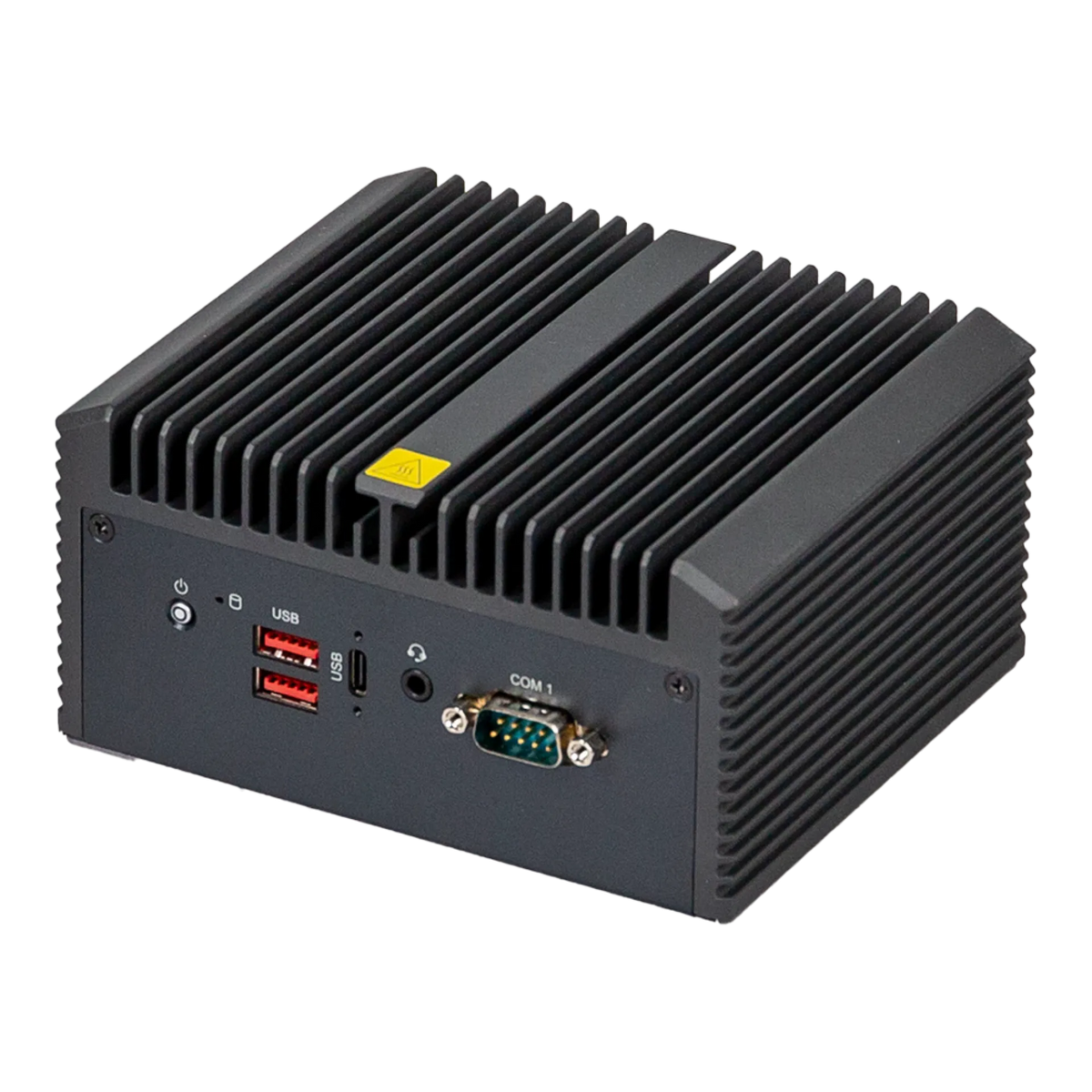

Gigabyte QBiX Series Embedded IPC Barebone (Model QBiX-RPLA1355H-A1)

Gigabyte QBiX Series Embedded IPC Barebone (Model QBiX-RPLA1355H-A1)

6BQB1355AMR-SI

$1,896.00
$1,896.00
Sale Sold out

Out of stock
View full details
Dimensions (W x D x H) 138W x 118D x 74.2H (mm)
Processor Intel® Core™ i7-1355U Processor
Intel® 7, 10 cores, 2P+8E, 12 threads, up to 5.0 GHz
Chipset SoC
Memory 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet 1 x 2.5 GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Realtek RTL8111H)
Graphics Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB Type C (DP Alt. mode), supporting a maximum resolution of 7680x4320 @30Hz, requires designated graphic driver
(3 independent display outputs)
Audio  Realtek® ALC269
M.2 M-Key 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (PCIe x1, USB2.0)
Front I/O 2 x USB 3.2 Gen 2x1
1 x USB 3.2 type C with DP 1.4b (DP Alt. mode)
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485)
1 x Combo Audio Jack (Headphone & Headset)
Rear I/O 2 x HDMI
2 x RJ45 LAN Ports
2 x External Antenna Holes (Optional)
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack
TPM Onboard TPM 2.0 security chip
INFINEON SLB9672VU2.0
DC Input 12V~19VDC (Adapter 19.5V/135W)
Single Box Size 258 x 191 x 130 (mm)
Single Box Weight Approx. 2.5kg
