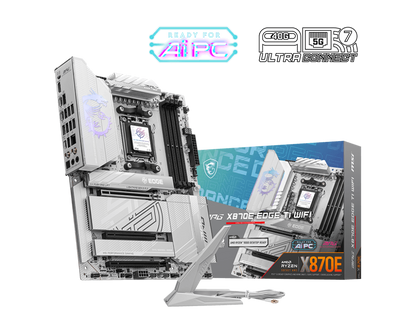

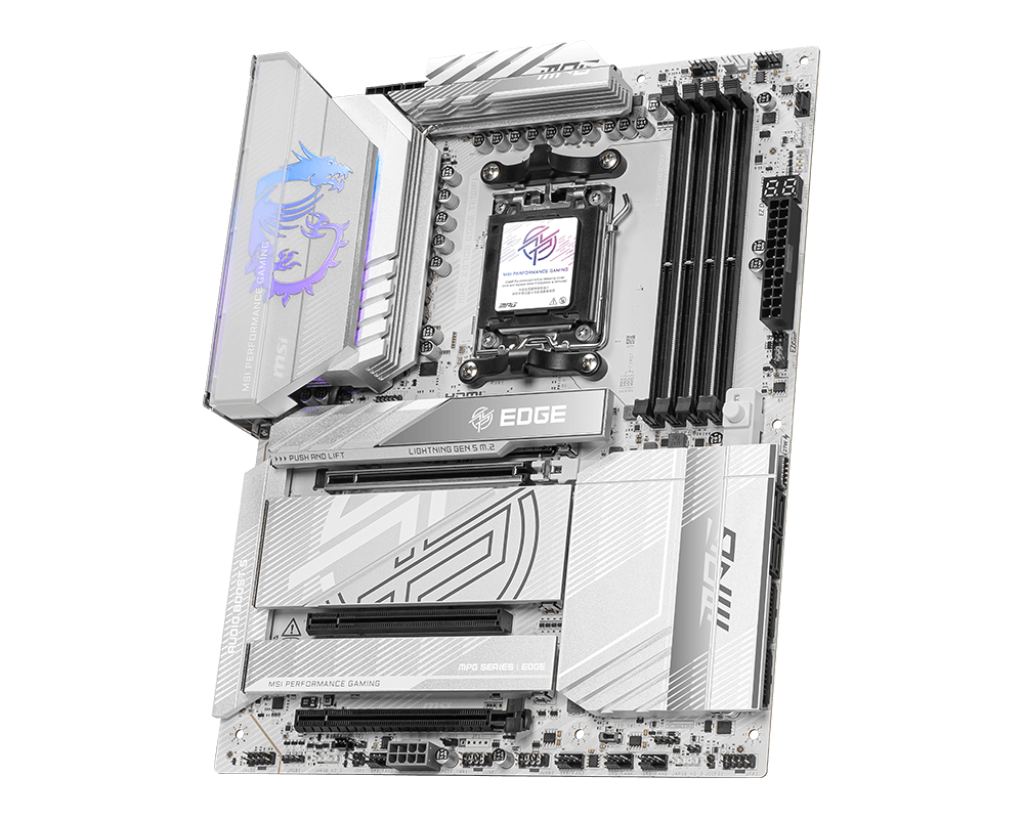

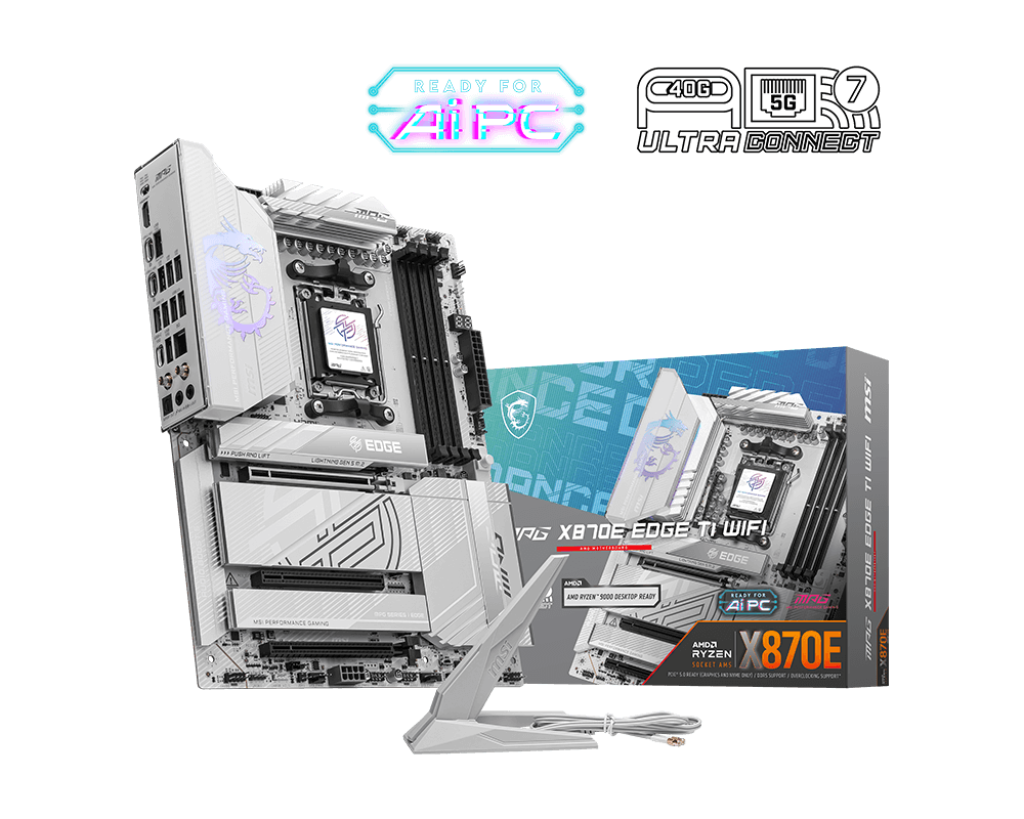

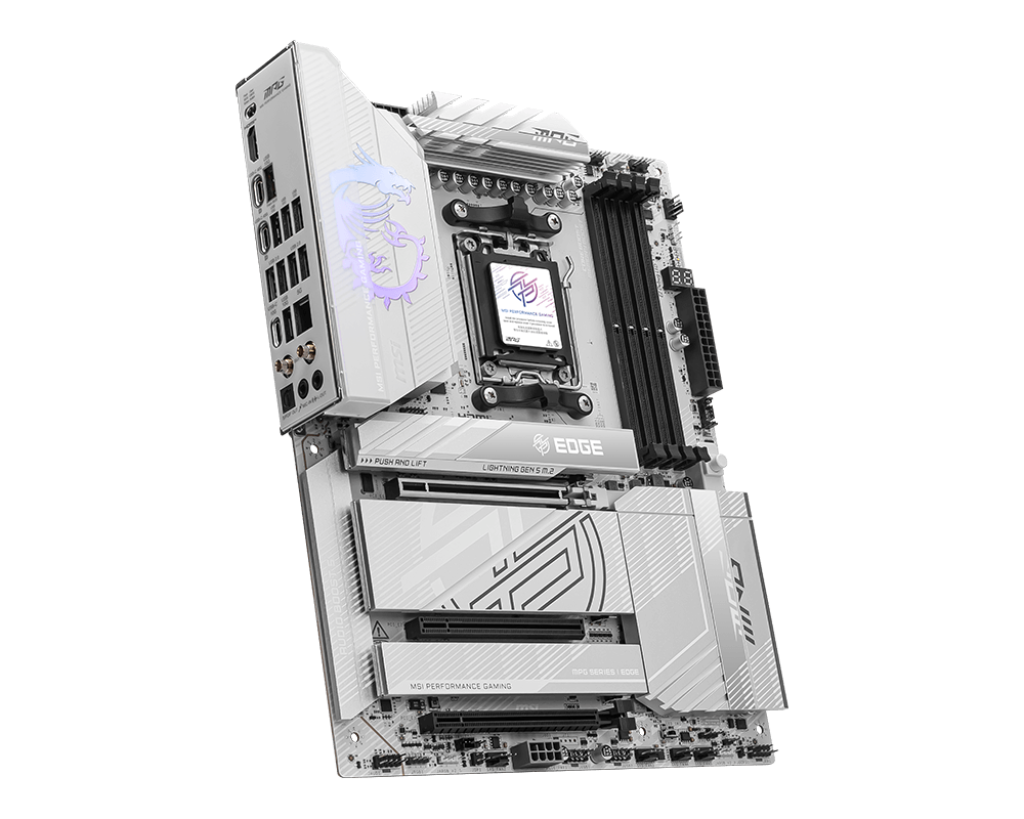

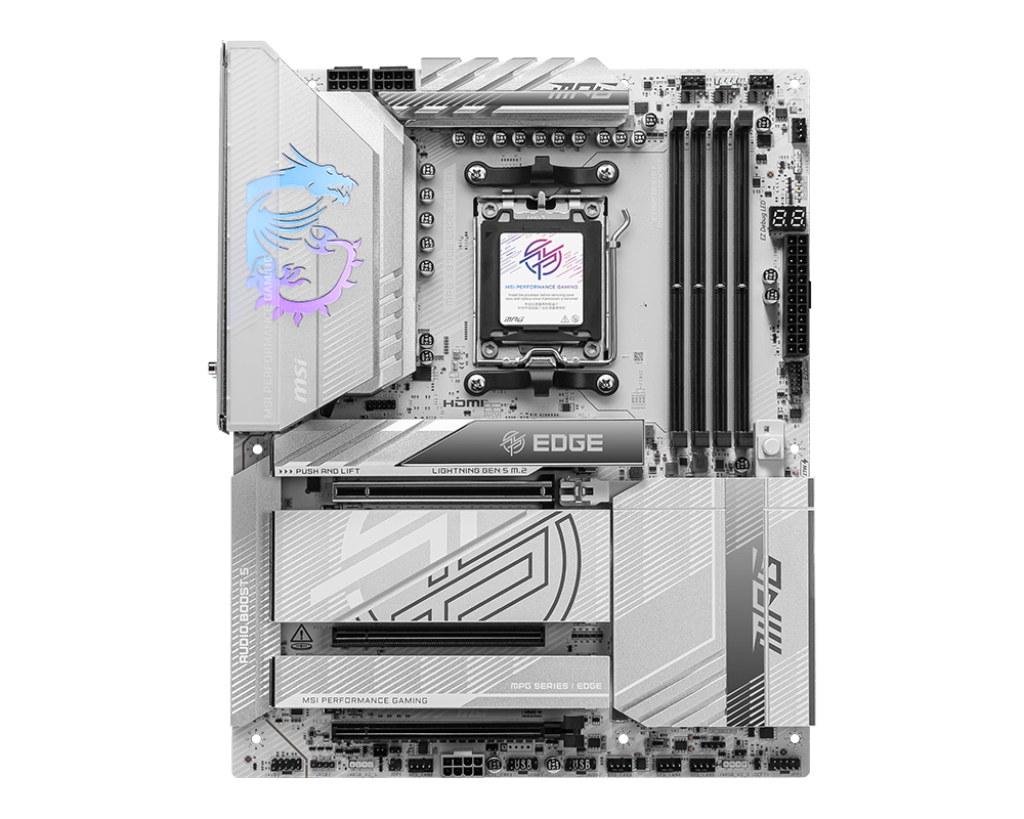

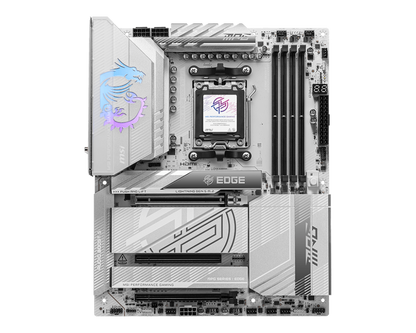

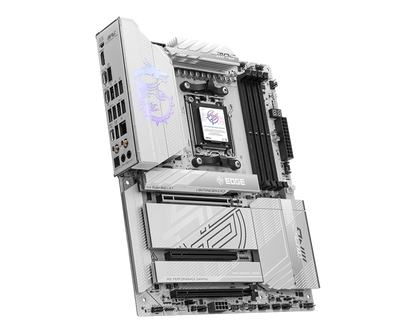

MSI MPG X870E EDGE TI WIFI MOTHERBOARD
MSI MPG X870E EDGE TI WIFI MOTHERBOARD
SKU:MPG X870E EDGE TI WIFI
Regular price
$667.00
Regular price
Sale price
$667.00
Unit price
per
In stock
Couldn't load pickup availability
-
Description
-
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
| Onboard Graphics | 1x HDMI™ |
| 2x Type-C DisplayPort | |
| Slot | 3x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | |
| Audio | Realtek® ALC4080 Codec |
| 7.1-Channel USB High-Performance Audio | |
| Storage | 4x M.2 |
| RAID | Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 5Gbps Type A (Front) | |
| 5x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| 1x USB 20Gbps Type C (Front) | |
| 2x USB 40Gbps Type C (Rear) | |
| LAN | 1x Realtek® 8126 5G LAN |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports Bluetooth® 5.4**, MLO, 4KQAM | |

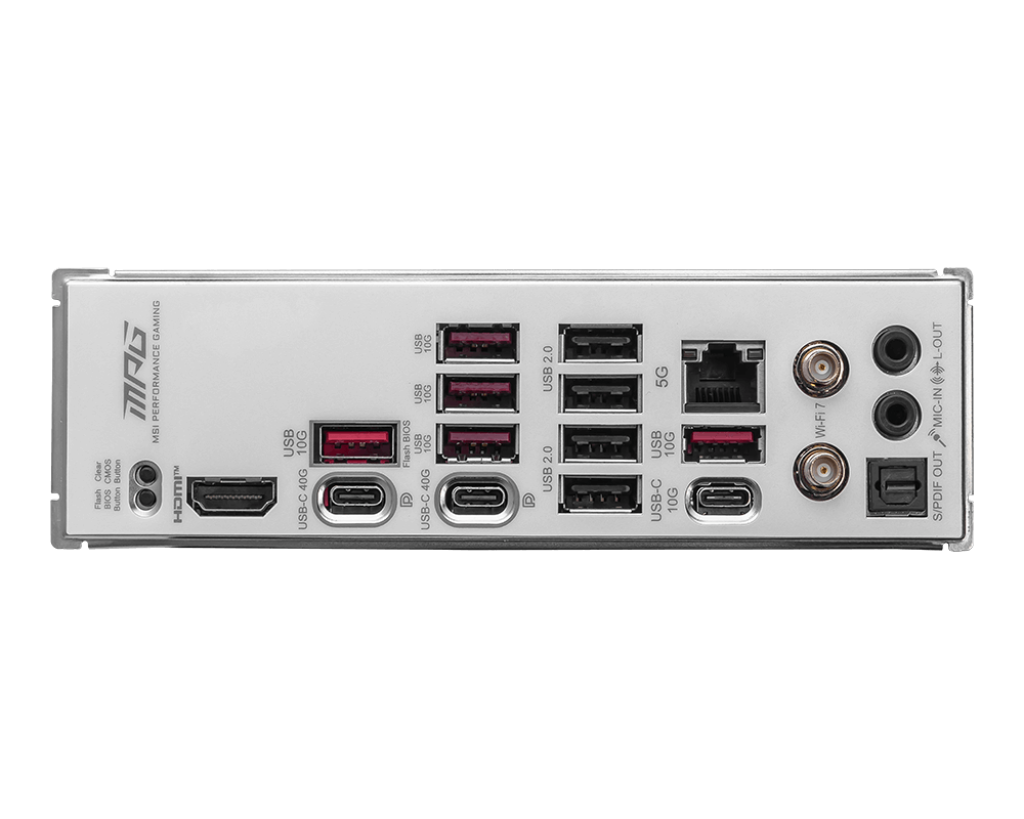

| BACK PANEL PORTS | Clear CMOS Button |
| USB 10Gbps Type-A | |
| USB 2.0 | |
| 5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| Flash BIOS Button | |
| HDMI™ | |
| USB 40Gbps Type-C | |
| USB 10Gbps Type-A | |
| USB 10Gbps Type-C | |
| Optical S/PDIF Out | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
