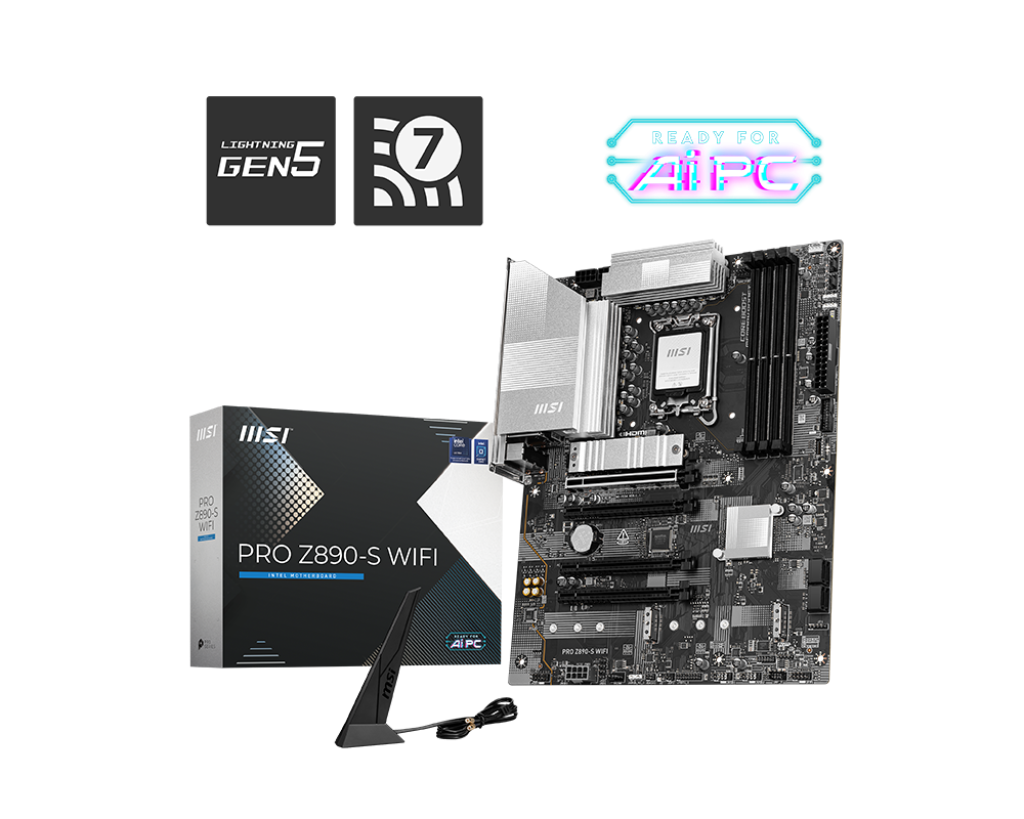

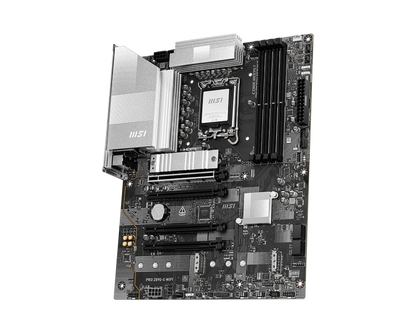

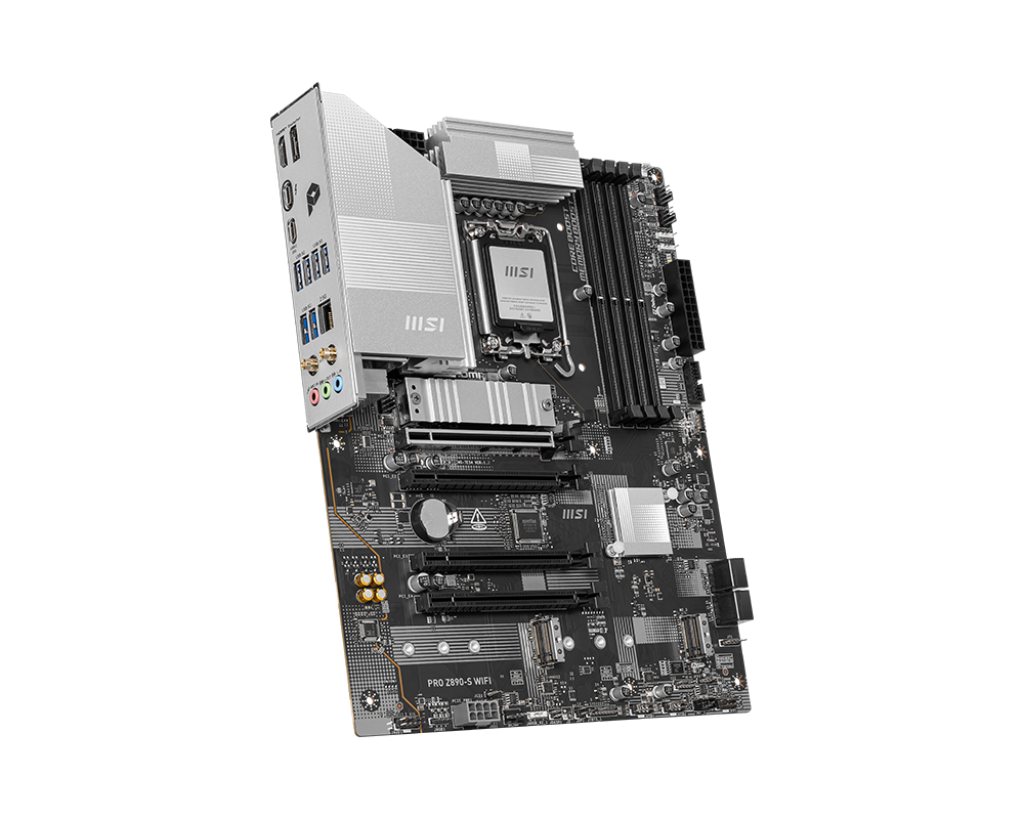

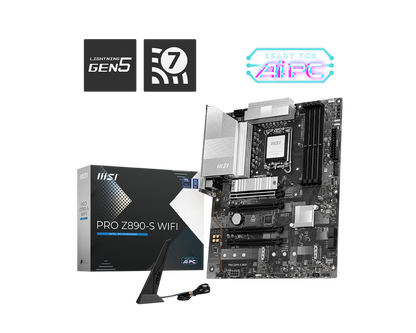

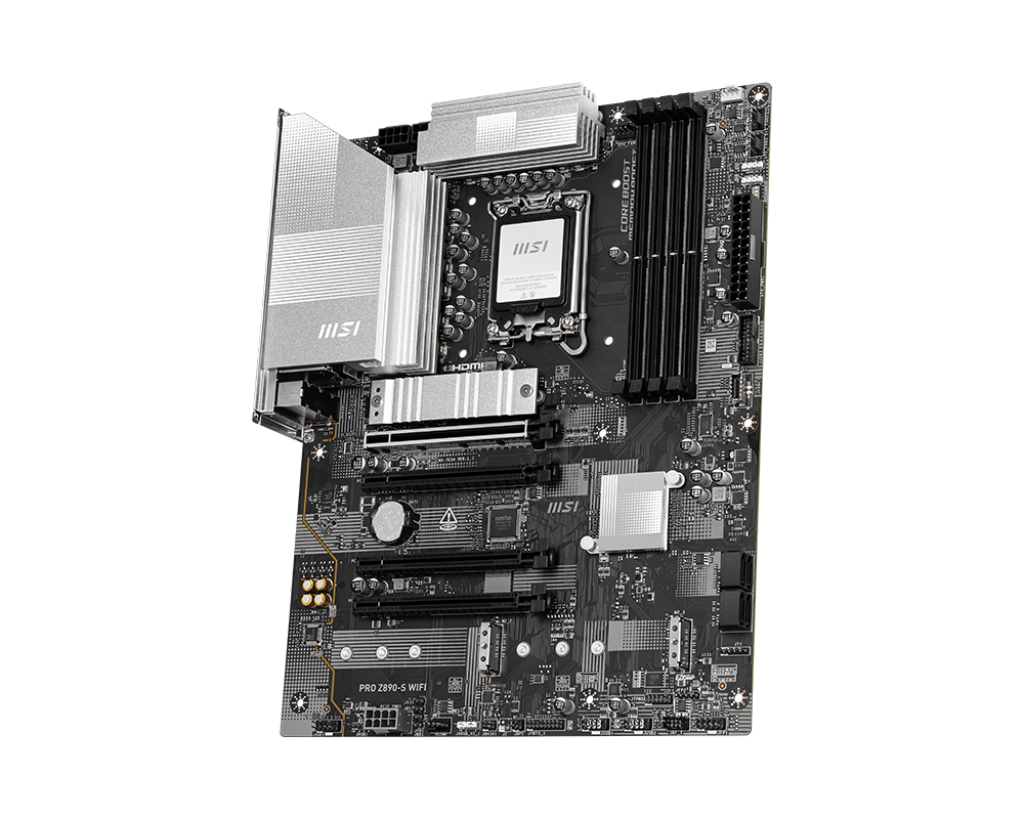

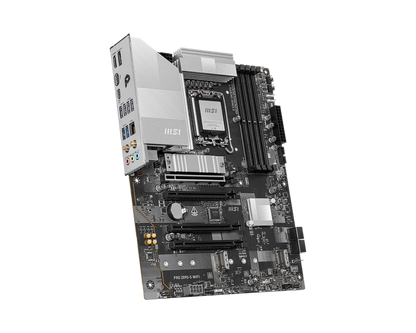

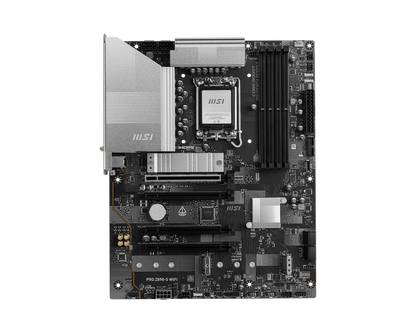

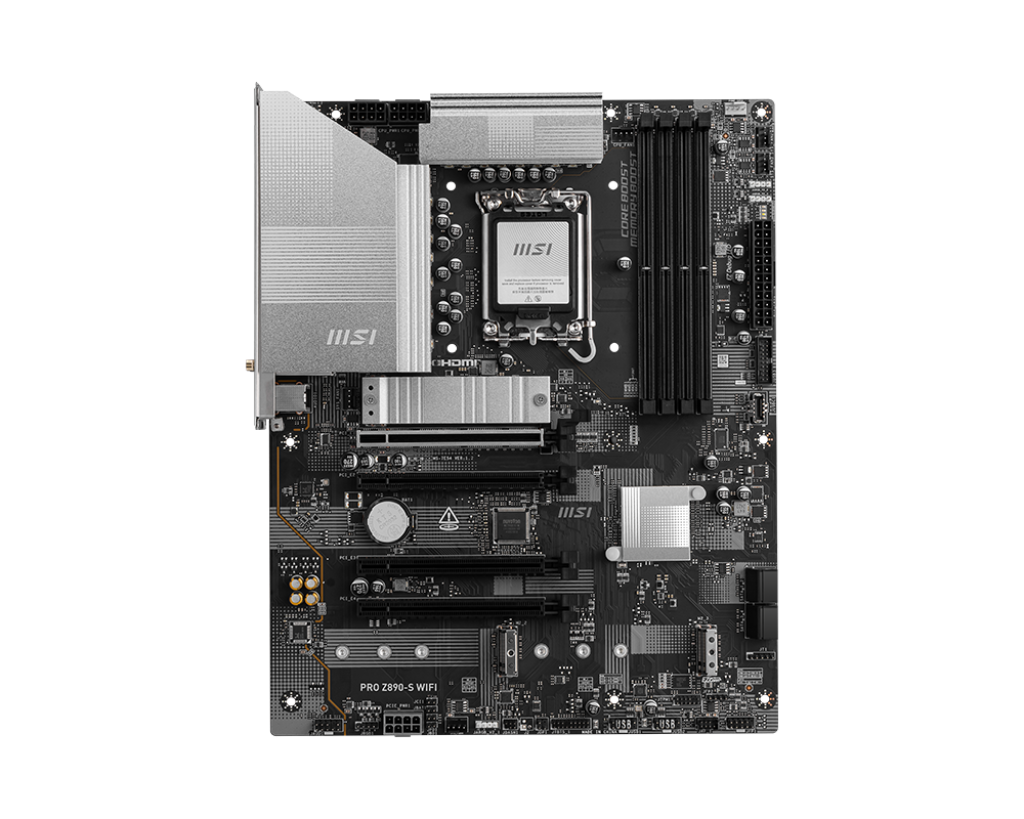

MSI PRO Z890-S WIFI MOTHERBOARD

MSI PRO Z890-S WIFI MOTHERBOARD

PRO Z890-S WIFI

$369.00
$369.00
Sale Sold out

Out of stock
View full details
Chipset INTEL Z890
CPU Support Intel® Core™ Ultra Processors (Series 2) LGA 1851 Socket
Memory 4x DDR5 UDIMM, Max Capacity: 256GB
Memory Speed 8800 - 6400 (OC) MT/s 6400 - 4800 (JEDEC) MT/s
Memory Overclocking Supports Intel® XMP 3.0 Dual-Controller Dual-Channel mode
Onboard Graphics 1x HDMI™ 2.1 (4K 60Hz)
1x DisplayPort 1.4 (4K 60Hz)
1x Type-C DisplayPort (Thunderbolt 4, 4K@120Hz / 8K@60Hz)
PCIe Slots 4x PCI-E x16 Slots:
PCI_E1 (PCIe 5.0 x16, from CPU)
PCI_E2 (PCIe 3.0 x1, from Chipset)
PCI_E3 (PCIe 4.0 x4, from Chipset)
PCI_E4 (PCIe 4.0 x4, from CPU)
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage 3x M.2 Slots:
M.2_1 (PCIe 5.0 x4, from CPU)
M.2_2 (PCIe 4.0 x4, from Chipset)
M.2_3 (PCIe 4.0 x4 / SATA, from Chipset)
4x SATA 6G
RAID Support SATA: RAID 0, 1, 5, 10
M.2 NVMe: RAID 0, 1, 5
Thunderbolt 1x Thunderbolt 4 Port (Rear)
Supports up to 40Gbps (Thunderbolt)
Supports USB4 (20Gbps)
Supports USB 3.2 (10Gbps)
Supports 8K Display

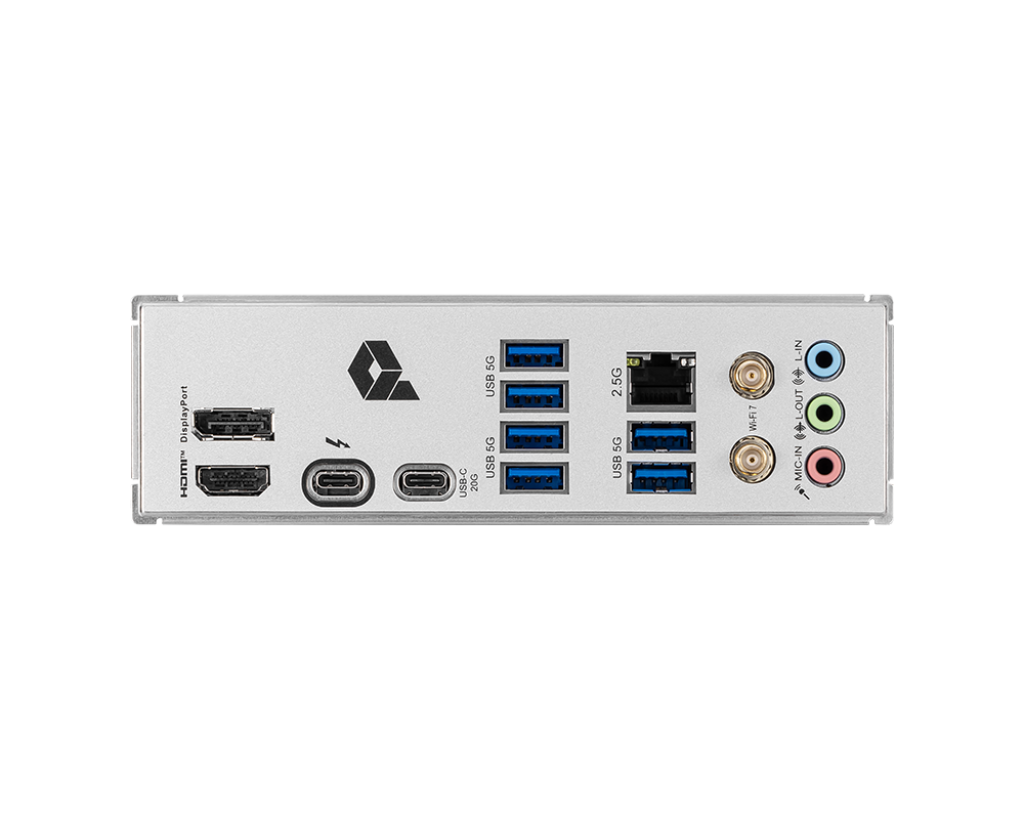

USB Ports Front:
4x USB 2.0
2x USB 5Gbps Type-A
1x USB 20Gbps Type-C

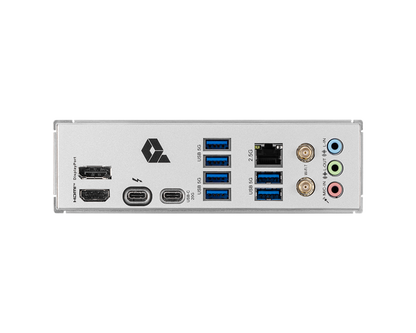

Rear:
6x USB 5Gbps Type-A
1x USB 20Gbps Type-C
LAN Realtek® 8125D 2.5Gbps LAN
Internal I/O 1x Thunderbolt 5 Card Connector (JTBT5)
1x ATX Power Connector
2x CPU Power Connector
1x PCIe Power Connector (8-pin)
1x CPU Fan 1x Combo Fan (Pump/Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller Connector (JDASH)
3x Addressable V2 RGB LED Connectors
1x RGB LED Connector (JRGB)
1x TPM Pin Header (Supports TPM 2.0)
Wireless LAN & Bluetooth Intel® Wi-Fi 7
Supports MU-MIMO TX/RX (2.4GHz / 5GHz / 6GHz, up to 5.8Gbps)
Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth® 5.4 (Windows 11 24H2 Ready)
LED Features 4x EZ Debug LED
