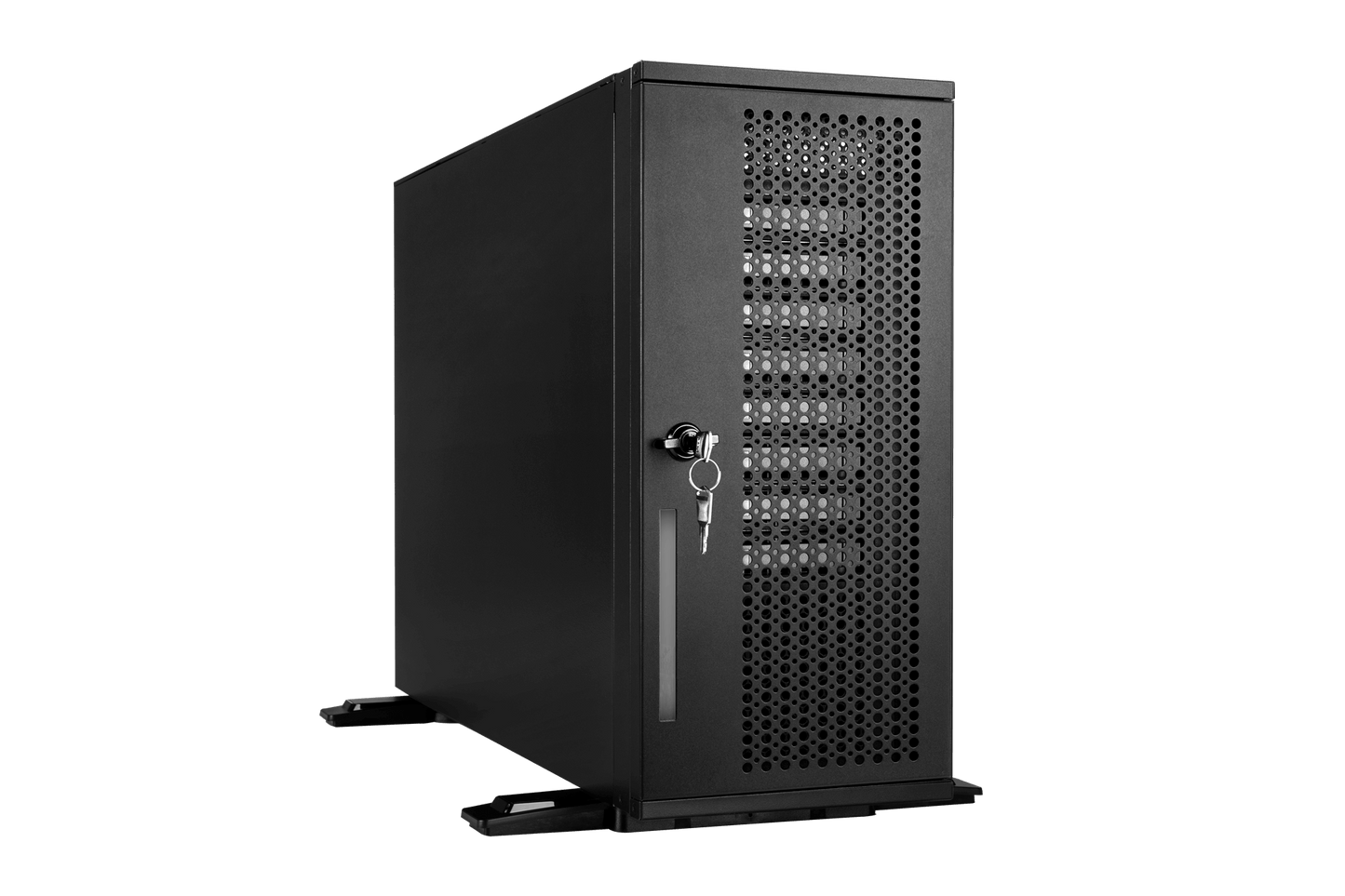

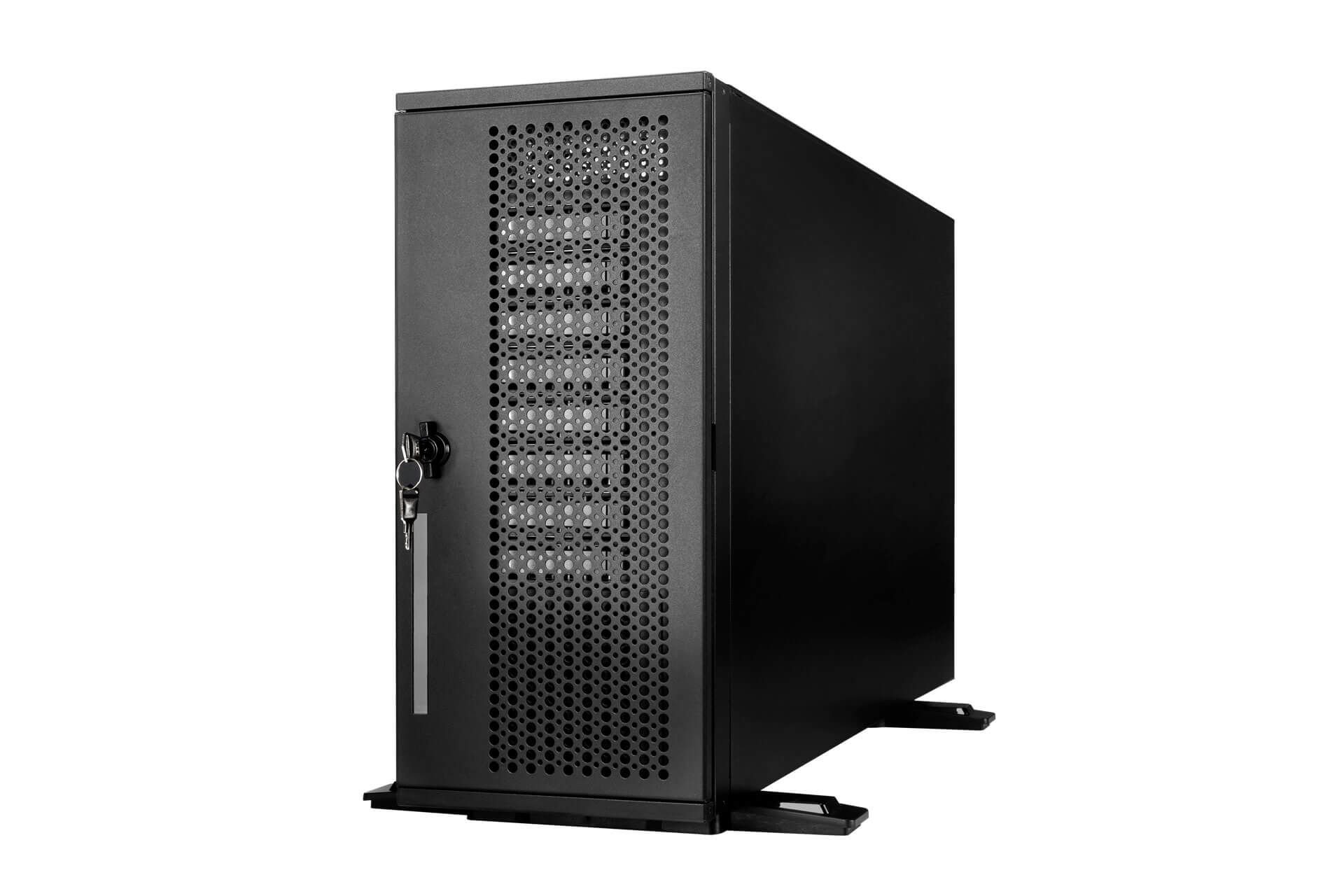

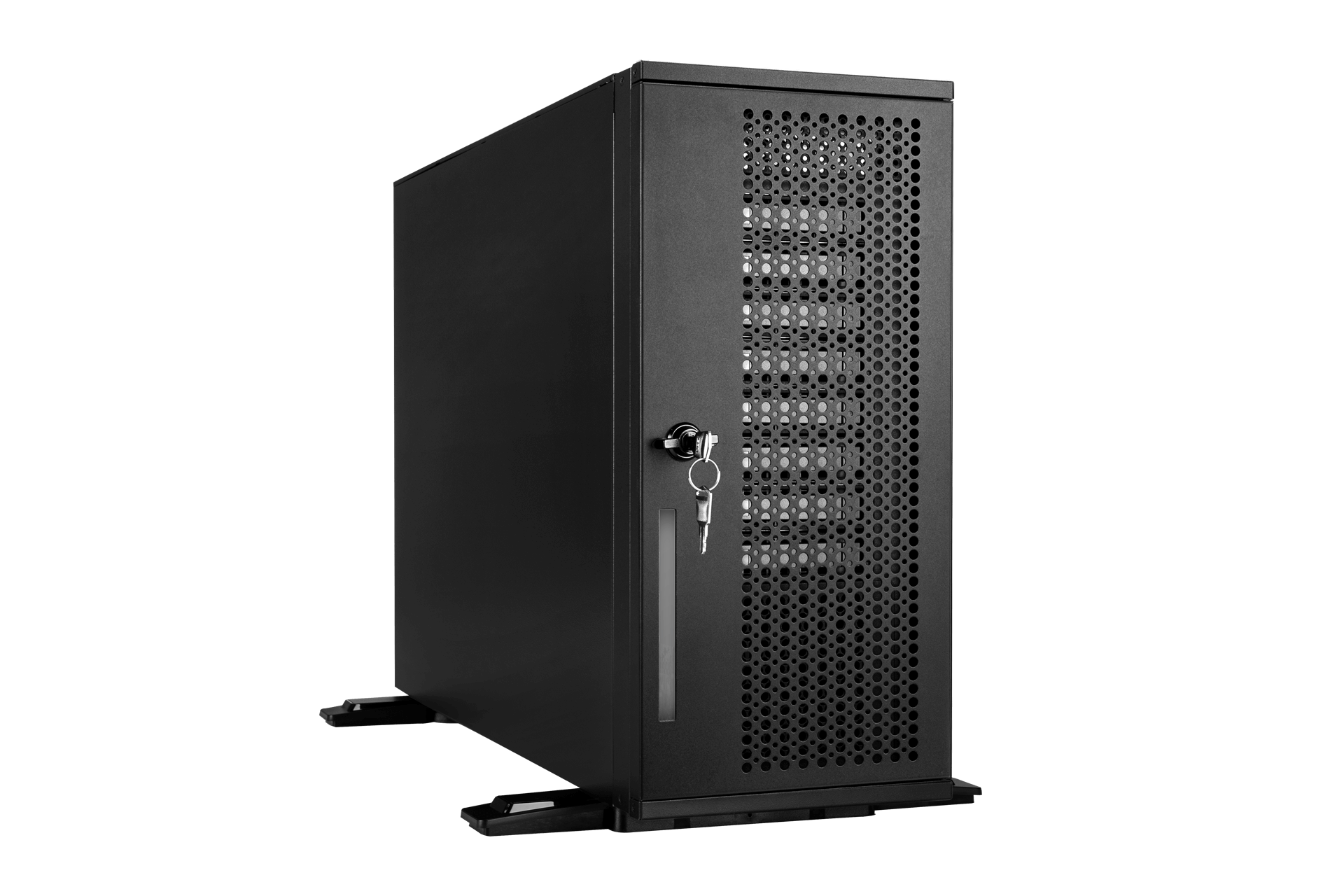

PLV Tower Chassis 550W REDUNDANT PSU PLATINUM - R1CA2551B

PLV Tower Chassis 550W REDUNDANT PSU PLATINUM - R1CA2551B

R1CA2551B

$1,030.00
$1,030.00
Sale Sold out

Low stock
View full details
Industry Standard Compatible with EIA-RS310D standard 19" cabinets
M/B Form Factor ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13")

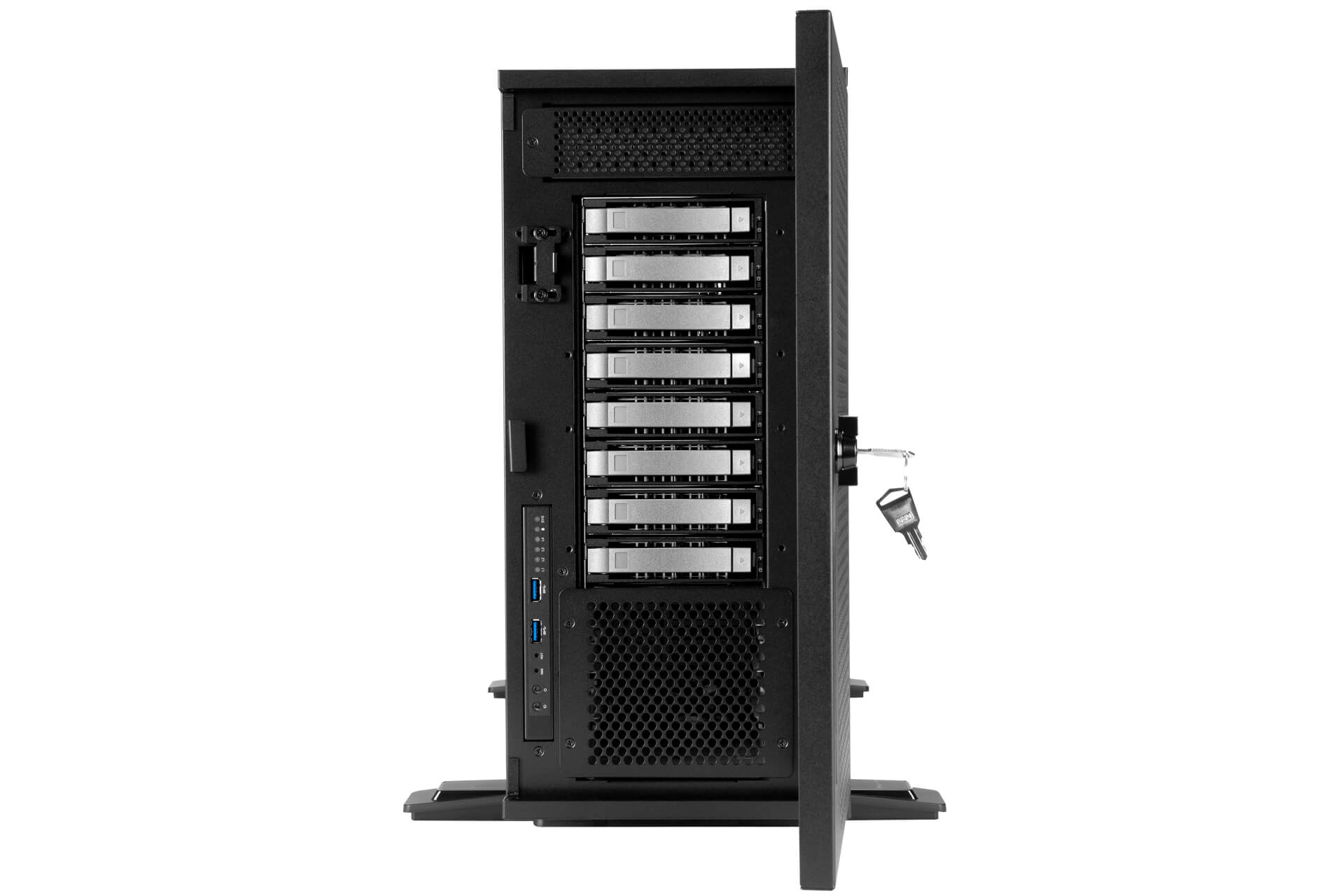

Drive Bay • External 2.5"/3.5" hot-swap trays x 12 (pre-installed x 8), 5.25" x 1
• Internal 2.5" x 2 or 3.5" x 1

Indicators Power status, HDD LED, LAN1/LAN2/LAN3/LAN4 LED, ID LED, system fail activity LED
Front Control Panel Power switch, ID switch, system reset, NMI, USB 3.0 x 2
Chassis Security Supports padlock loop and Kensington lock slot
Backplane Type-1 Mini-SAS HD (SFF-8643), 12Gbps supported x 3 (pre-installed x 2)
Backplane Type-2 Mini-SAS HD (SFF-8611) & OCuLink, 12Gbps supported x 3 (pre-installed x 2)
Cooling Fans • Middle: 92 x 25mm PWM fan x 3
• Rear: 120 x 25mm PWM fan x 1
• Rear fan kit for GPU thermal, 80x38mm, 8300RPM

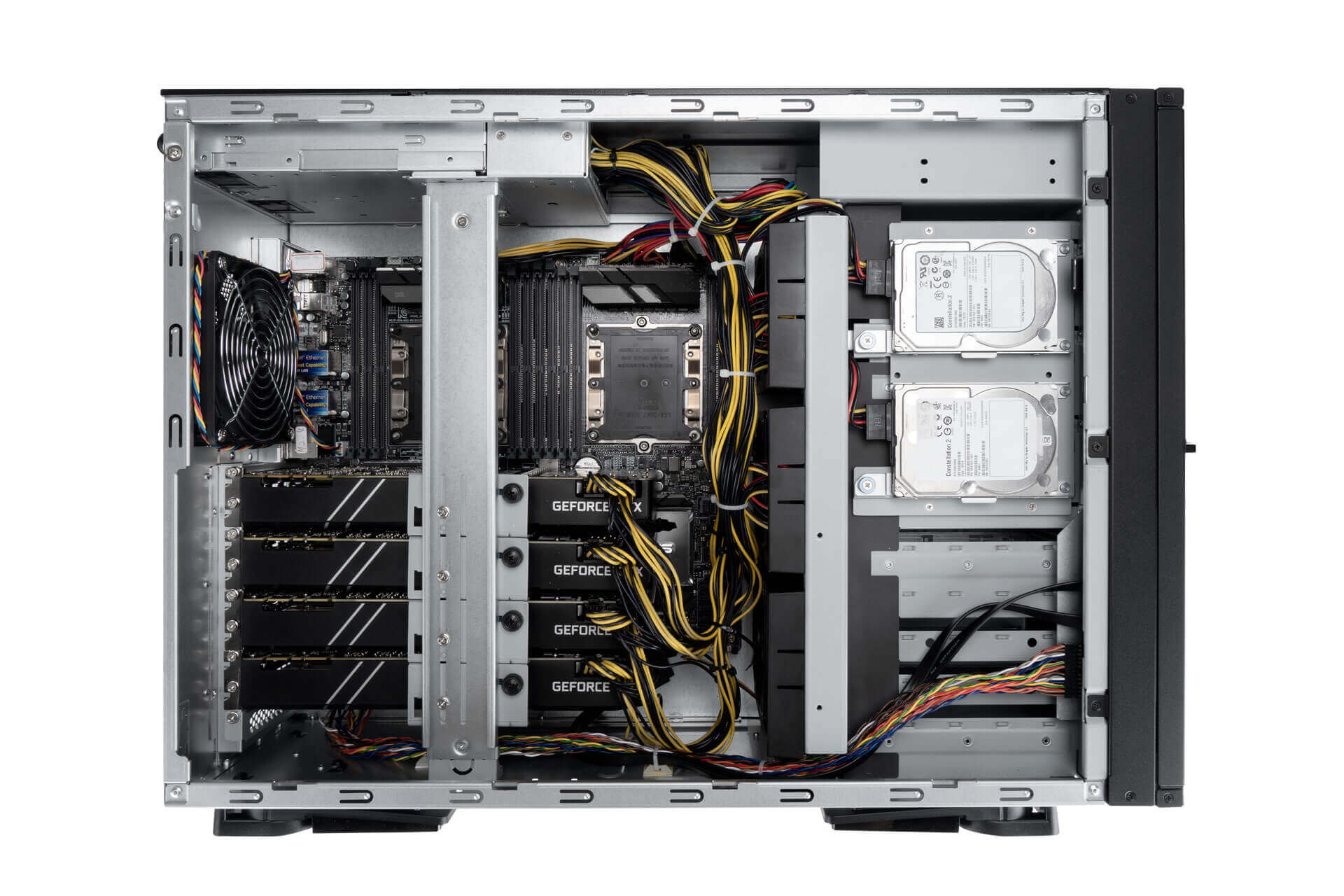

Expansion Slot Full-height PCIe slot x 9
Material • Material: SGCC
• Thickness: 1.0mm
Maximum Capacity • GPU length: 330mm
• CPU heatsink height: 145mm
Rail Kit Supports 28" tool-less & ball-bearing slide rail
Product Dimensions (DxWxH; Chassis Only) 589.7 x 200 x 430mm
(23.22" x 7.87" x 16.93")
Package Dimensions (DxWxH) 860 x 610 x 360mm
Weight (Chassis Only) • Net weight: 16.95kg
• Gross weight: 21.28kg
Cubic Feet 6.67
Container Information Single packing with pallets:
• 20': 100pcs
• 40': 220pcs
• 40' HQ: 264pcs




12Gb/s Backplane Specifications

Backplane Type-1 Mini-SAS HD & OCuLink backplane
Dimension (W x H) 111.5mm x 111.5mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2
HDD Interface SAS/SATA x 4 or SAS/SATA x 2 and NVMe SSD x 2




12Gbps Backplane Specifications

Backplane Type-2 Mini-SAS HD backplane
Dimension (W x H) 111.5mm x 111.5mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1
HDD Interface SAS/SATA HDD x 4
