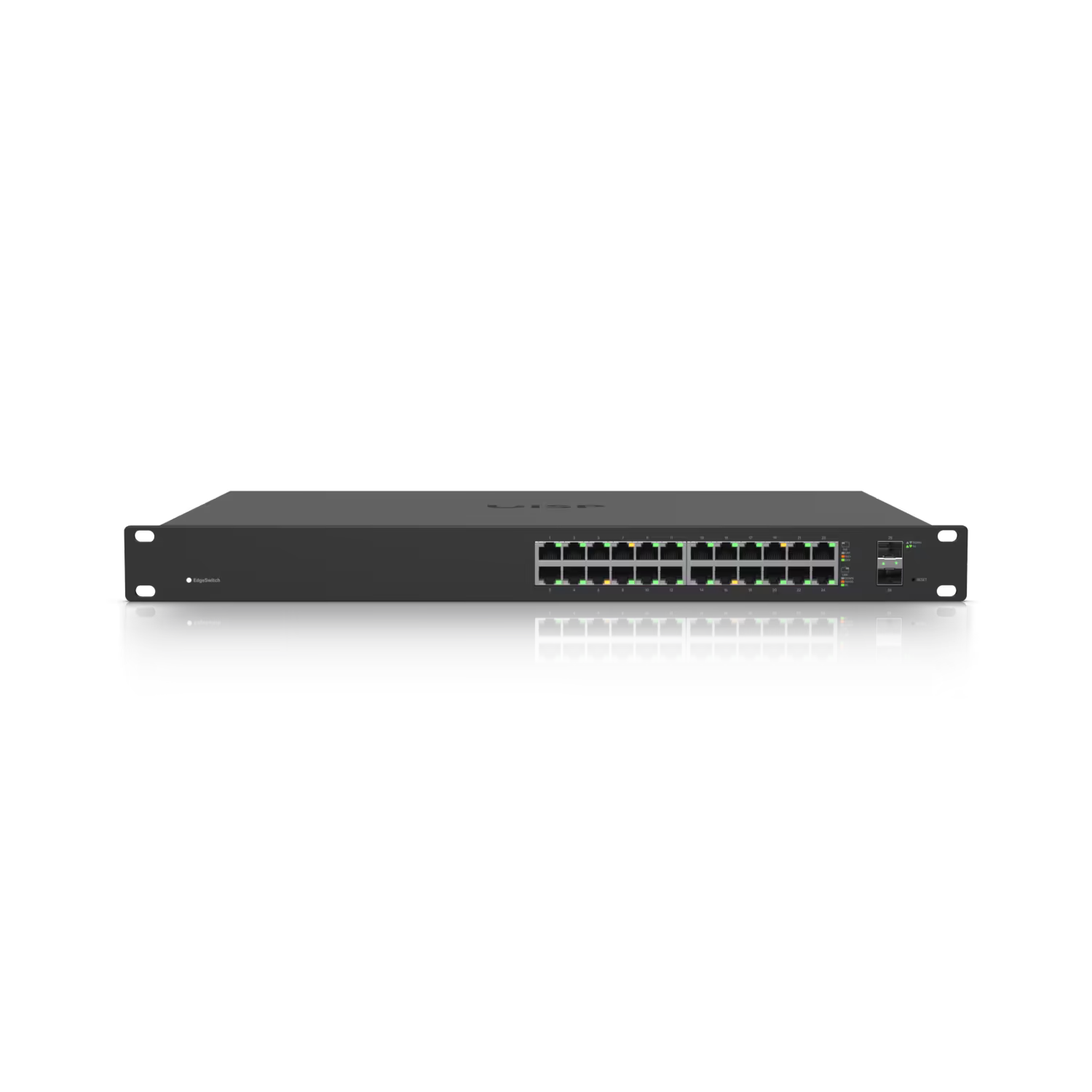

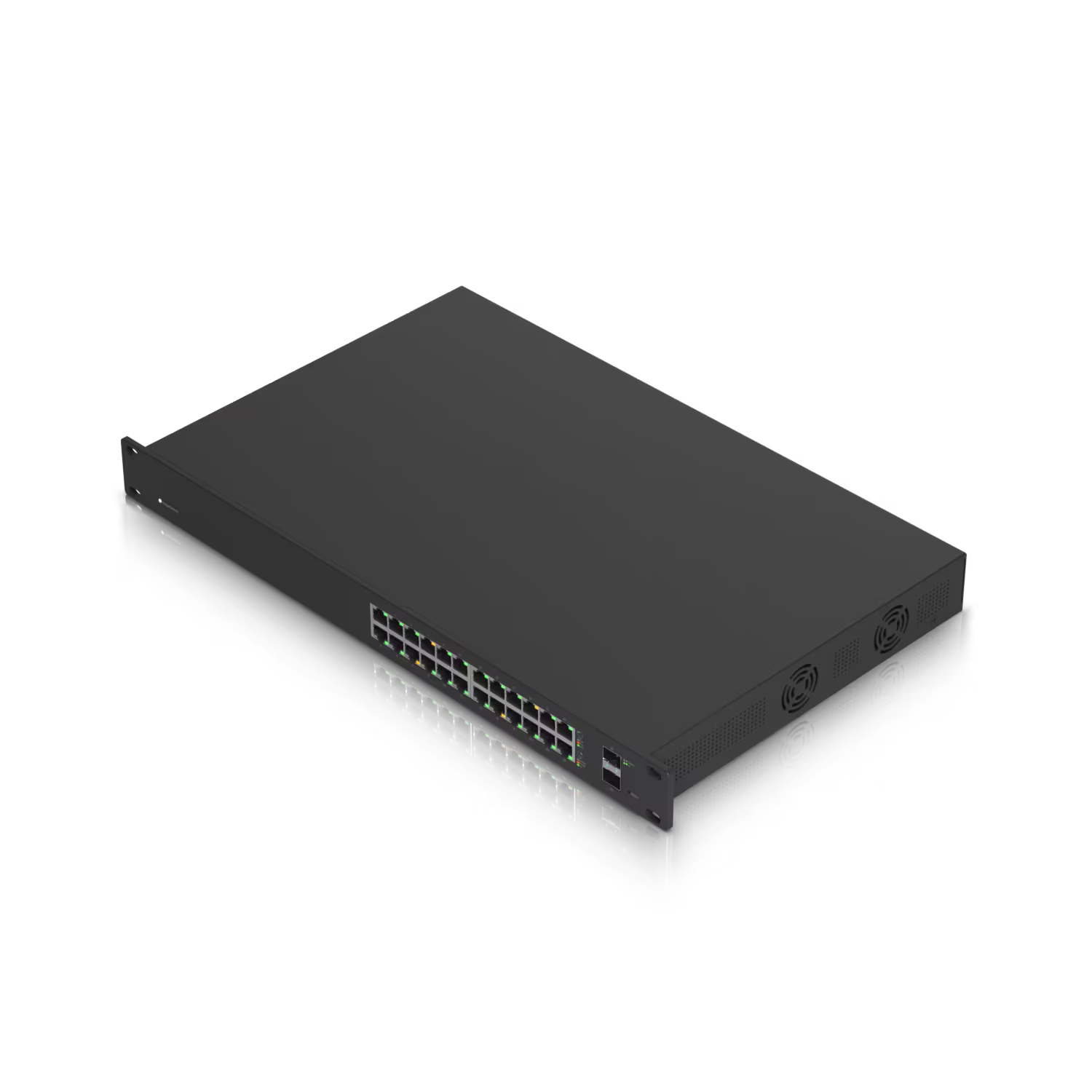

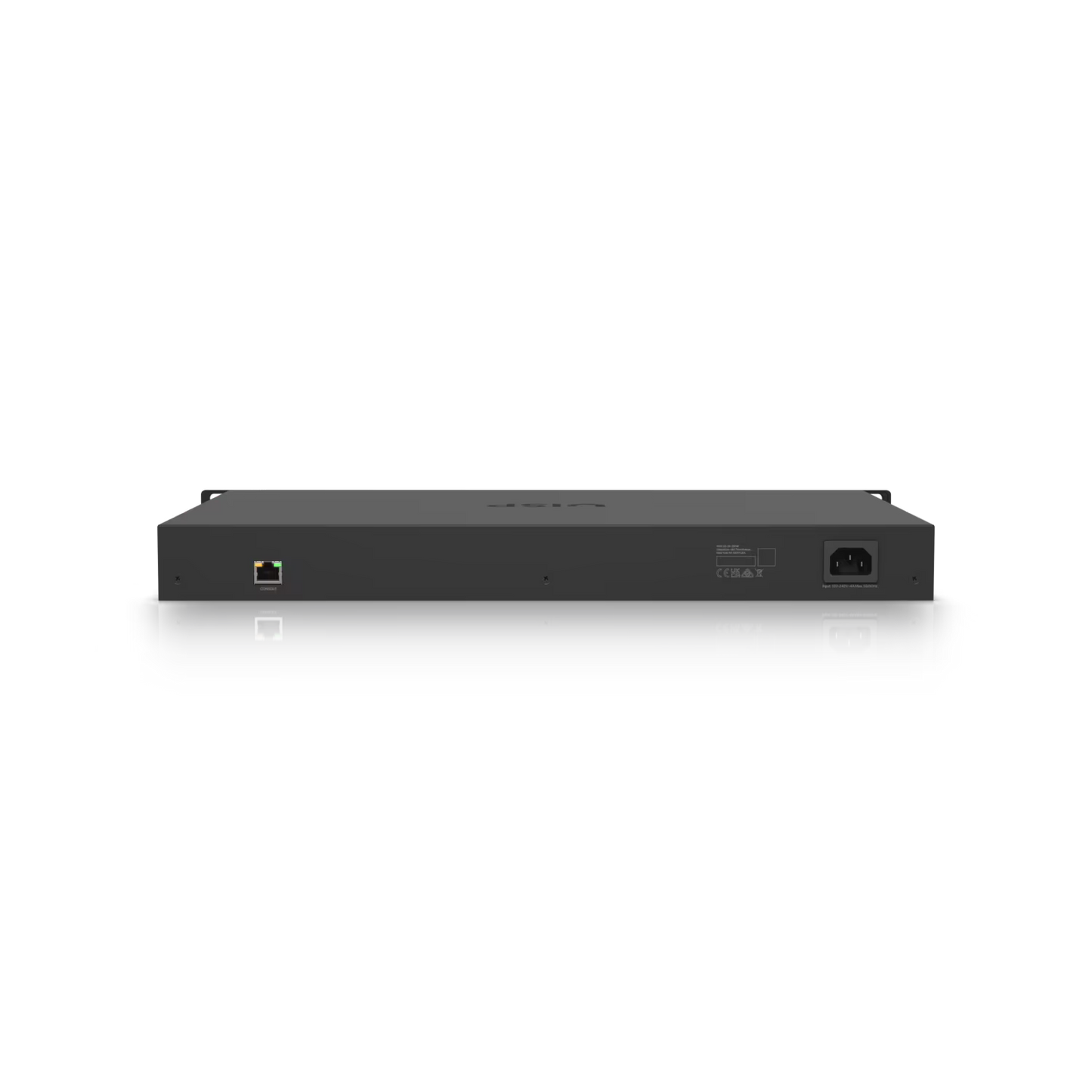

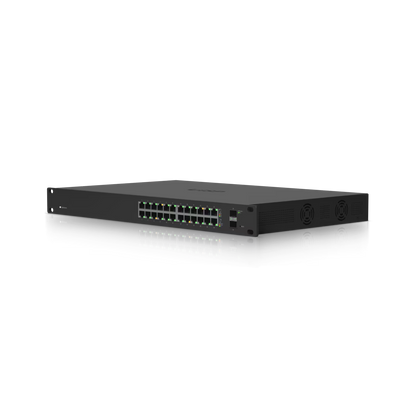

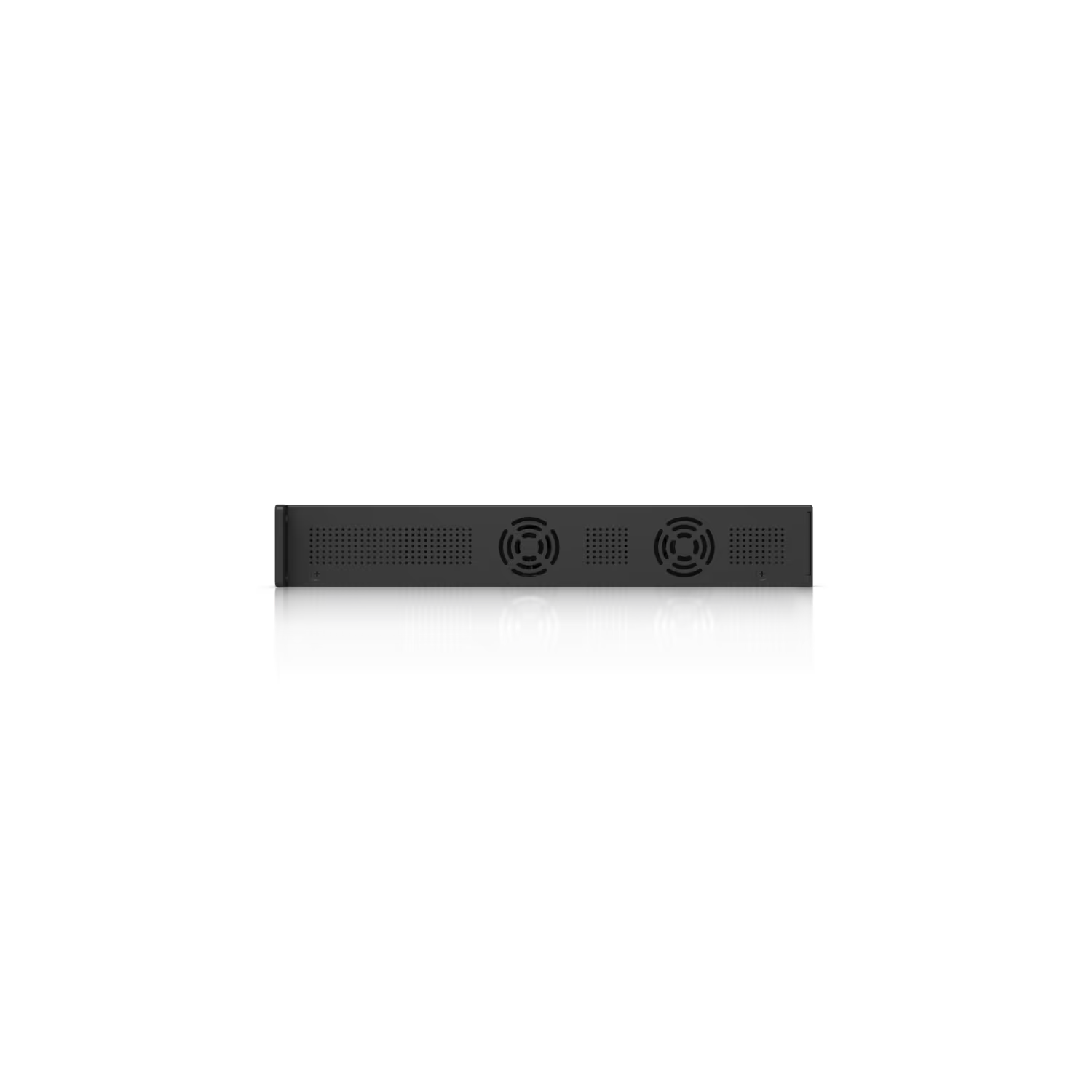

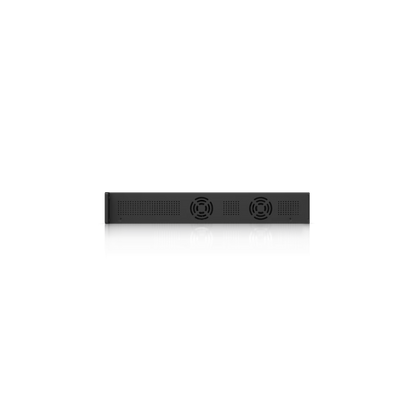

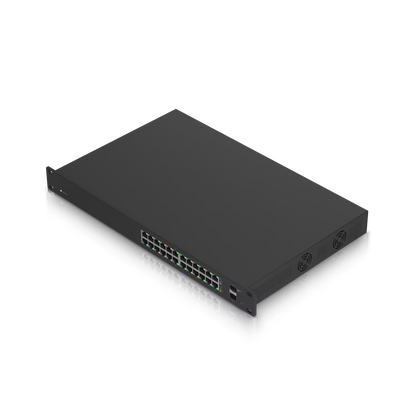

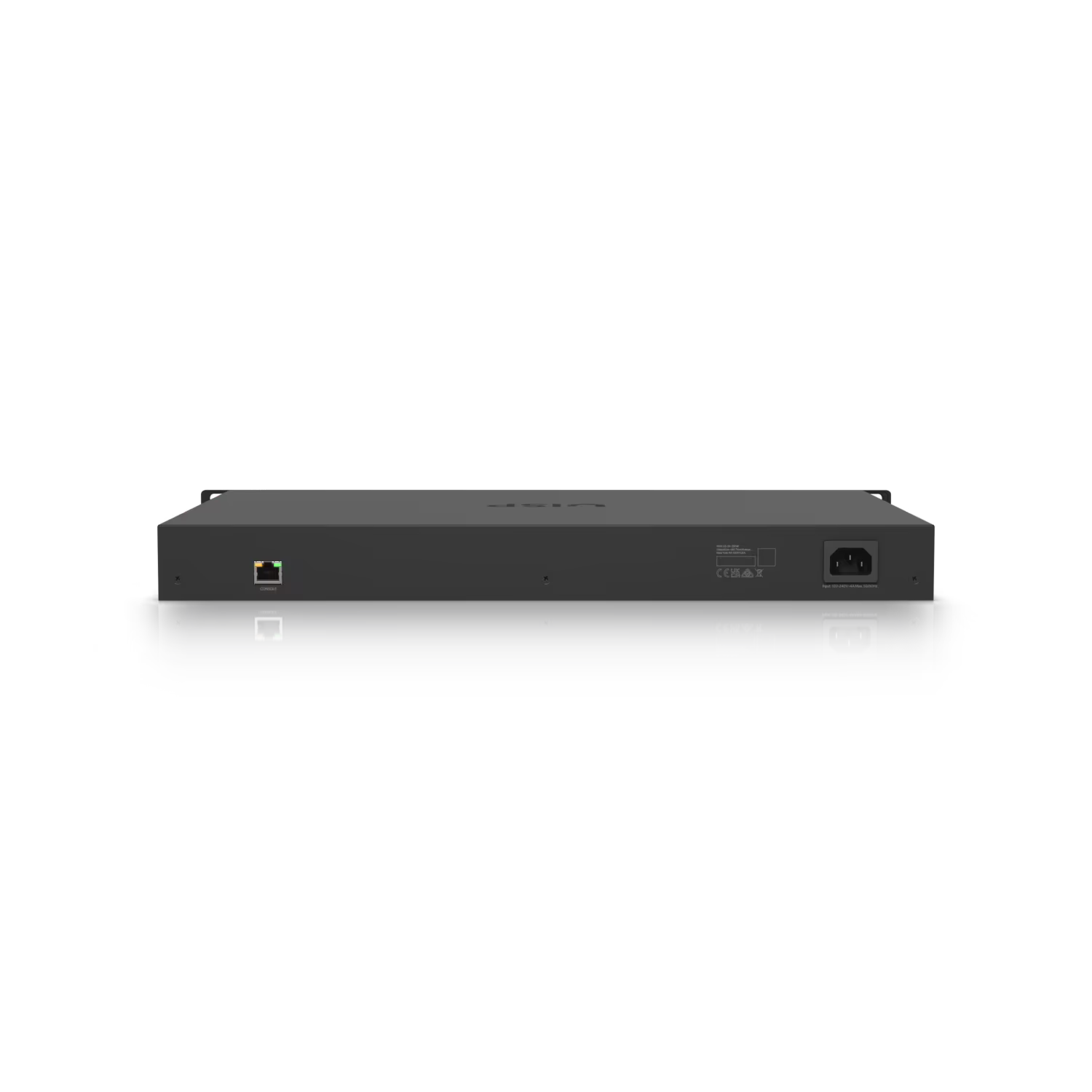

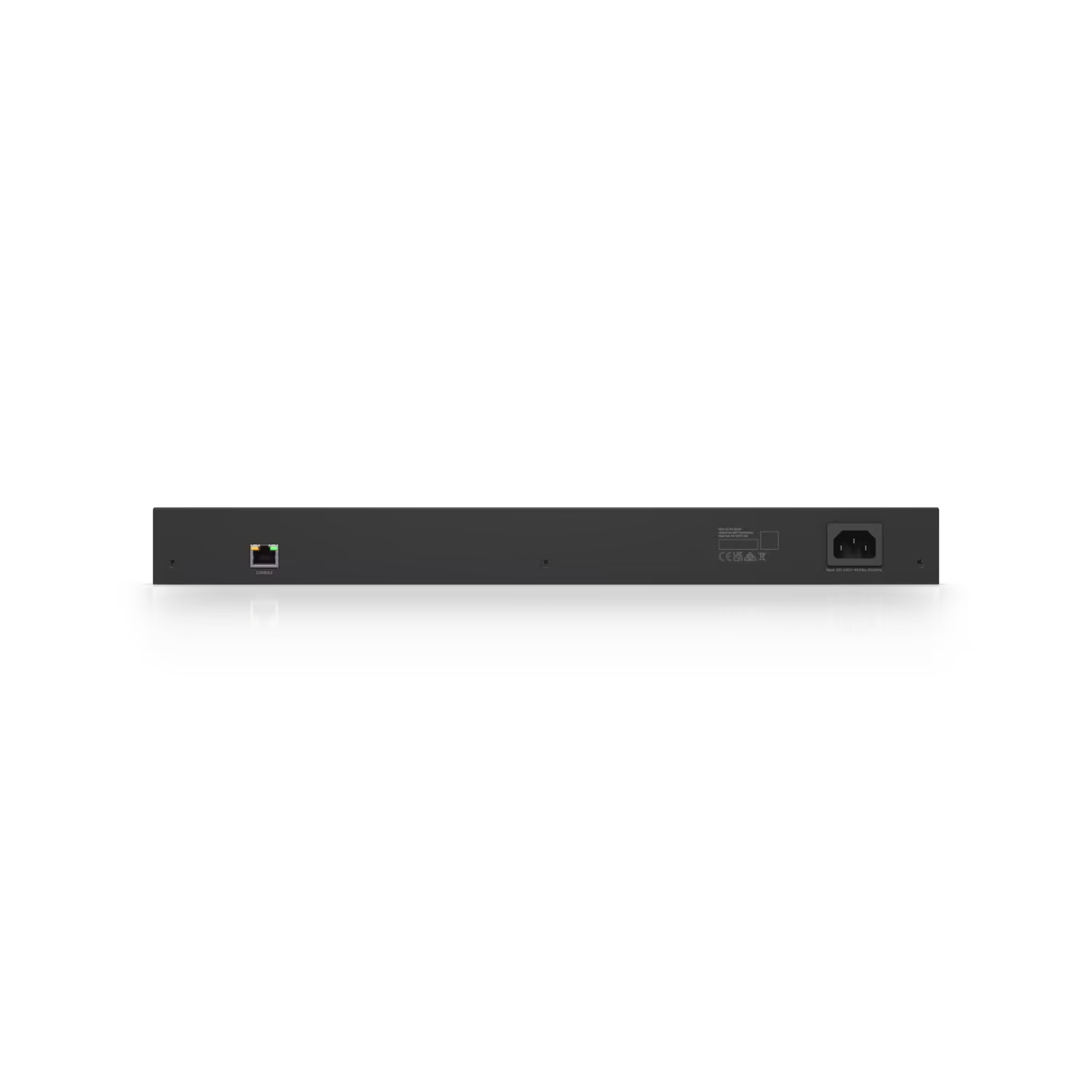

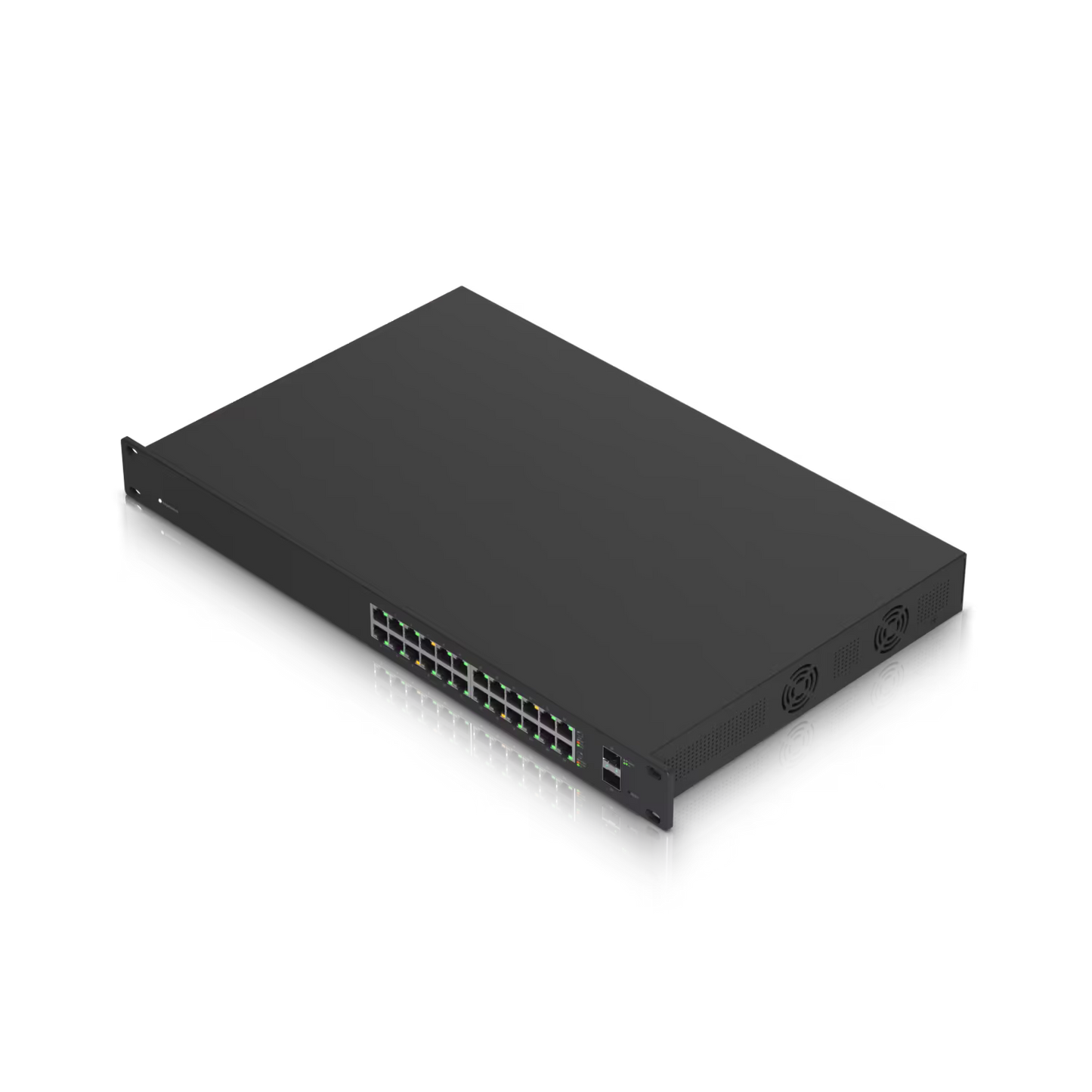

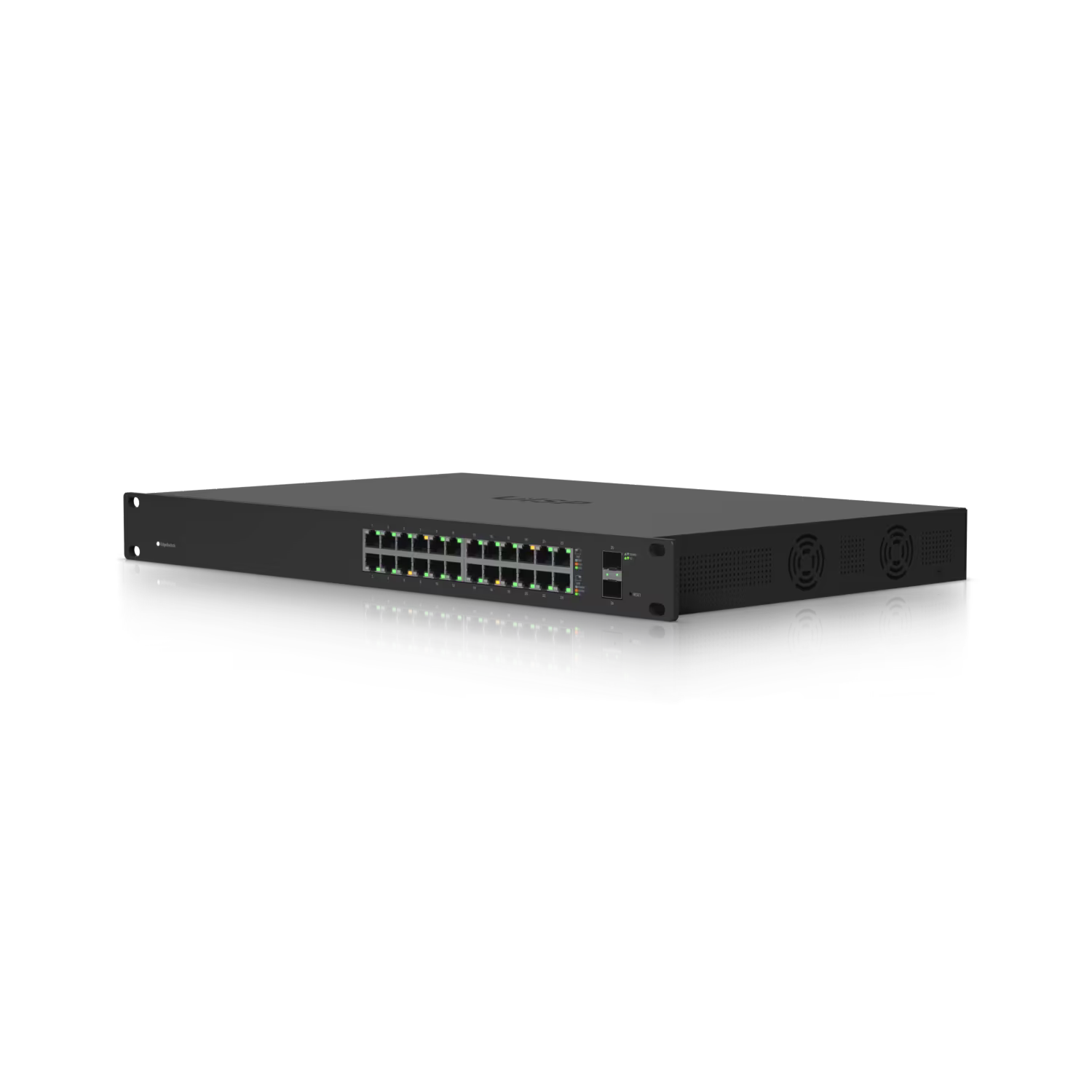

Ubiquiti EdgeSwitch 24 PoE (250W) Managed Switch
Ubiquiti EdgeSwitch 24 PoE (250W) Managed Switch
SKU:ES-24-250W-AU
Regular price
$720.00
Regular price
Sale price
$720.00
Unit price
per
Out of stock
Couldn't load pickup availability
-
Description
-
| Mechanical | |
| Dimensions | 485 × 43.7 × 285.4 mm (19.1 × 1.7 × 11.2 in) |
| Weight | 4.7 kg (10.4 lb) |
| Hardware | |
| Management Interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Networking Interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE Interface | (24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Power Method | 100–240V AC, universal input, 50/60 Hz |
| Power Supply | AC/DC, internal, 250W |
| Max. Power Consumption | 30W (excludes PoE output) |
| Total PoE Available | 250W |
| Max. PoE Wattage per Port (PSE) | PoE+: 34.2W Passive PoE: 17W |
| Voltage Range (PoE Mode) | PoE+: 50–57V Passive PoE: 20–27V |
| ESD / EMP Protection | Air/contact: ±24 kV |
| LEDs | Ethernet ports: PoE, speed/link/activity SFP ports: speed/link/activity |
| Button | Factory reset |
| Rackmount | Yes, 1U |
| Shock and Vibration | ETSI 300-019-1.4 standard |
| Operating Temperature | -5 to 40 °C (23 to 104 °F) |
| Operating Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC, Anatel (01245-15-08356) |
| NDAA Compliant | Yes |
