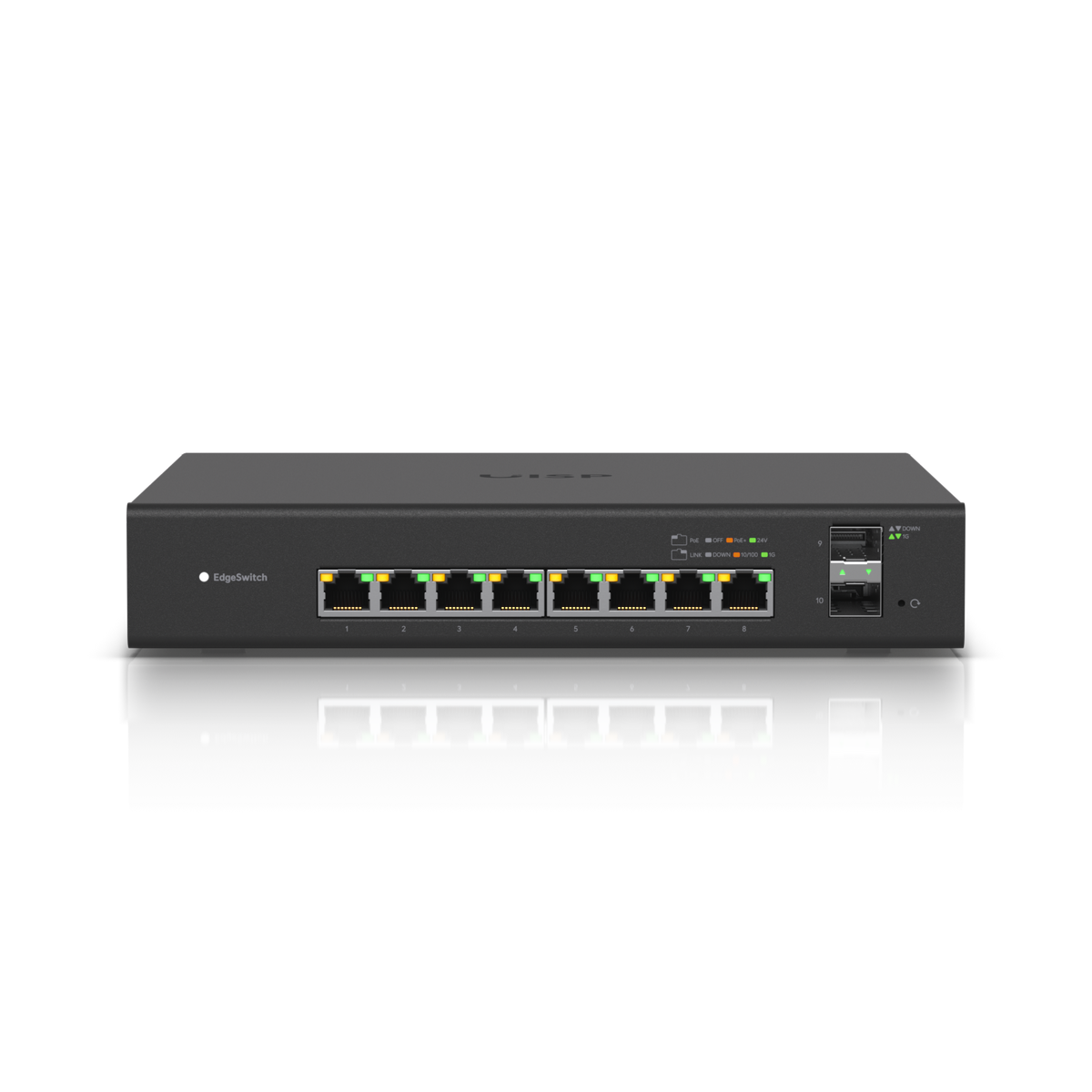

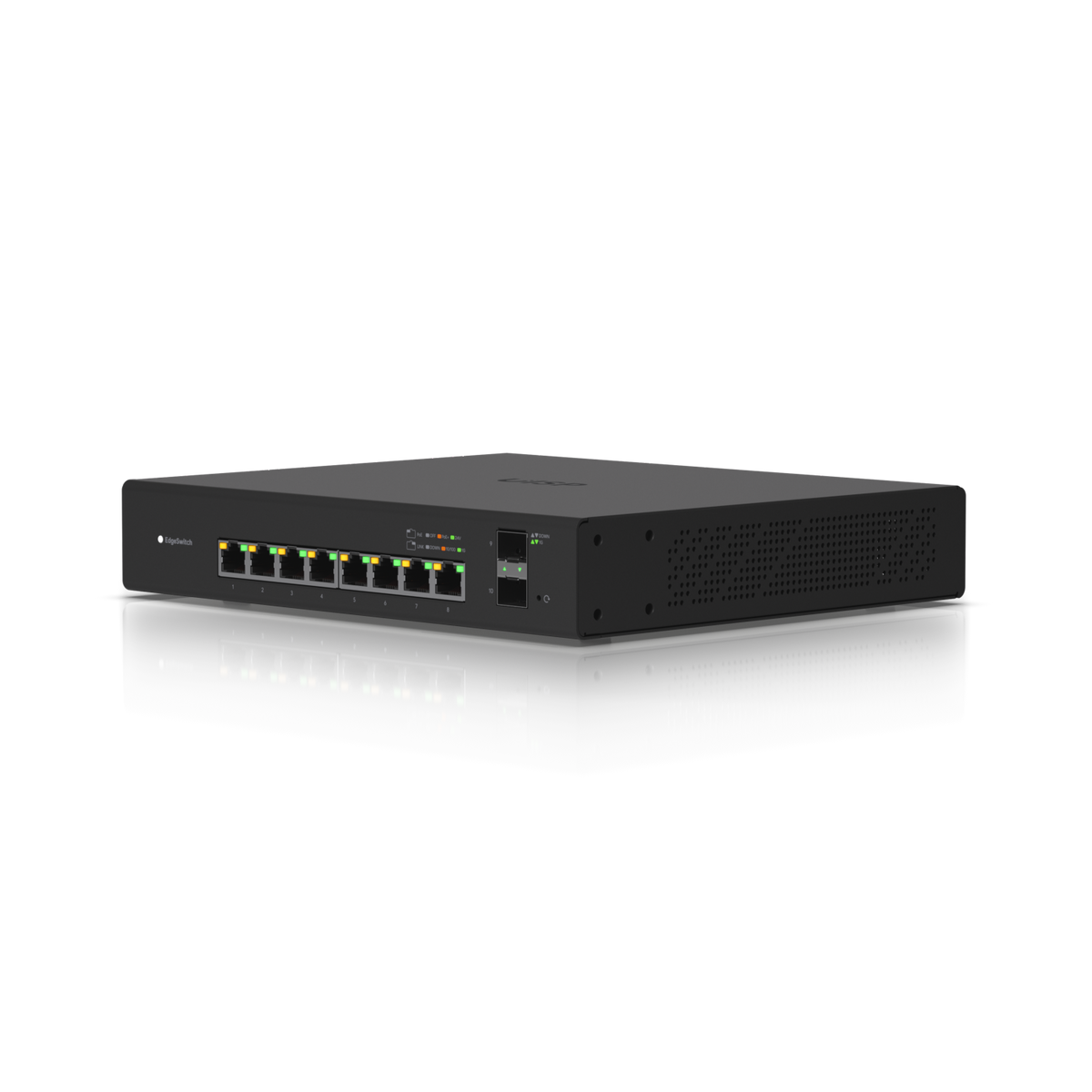

Ubiquiti EdgeSwitch 8 PoE (150W) Managed Switch
Ubiquiti EdgeSwitch 8 PoE (150W) Managed Switch
SKU:ES-8-150W-AU
Regular price
$366.00
Regular price
Sale price
$366.00
Unit price
per
Out of stock
Couldn't load pickup availability
-
Description
-
| Mechanical | |
| Dimensions | 204 x 43 x 235 mm (8 x 1.7 x 9.3") |
| Weight | 1.7 kg (3.8 lb) |
| Hardware | |
| Management Interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Networking Interface | (8) GbE RJ45 ports; (2) 1G SFP ports |
| PoE Interface | (8) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) |
| (8) 24V/0.7A passive PoE 2-pair (Pins 4, 5+; 7, 8-) | |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 100–240V AC, universal input, 50/60 Hz, AC/DC integrated PSU |
| 42–56V DC terminal block, external input (self-correcting polarity protection) | |
| Power Supply | AC/DC, internal, 150W DC |
| Max. Power Consumption | 20W (excludes PoE output) |
| Total PoE Available | 150W |
| Max. PoE Wattage per Port (PSE) | PoE+: 34.2W; Passive PoE: 17W |
| Voltage Range PoE Mode | PoE+: 50–57V; Passive PoE: 20–27V |
| ESD/EMP Protection | Air/contact: ±24kV |
| LEDs | System: status |
| Ethernet ports: PoE, link/speed/activity | |
| SFP ports: link/speed/activity | |
| Button | Factory reset |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Ambient Operating Temperature | Internal AC/DC at 150W: -25 to 45°C (-13 to 113°F) |
| Internal AC/DC at 100W: -25 to 55°C (-13 to 131°F) | |
| External DC: -25 to 60°C (-13 to 140°F) | |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, Anatel: 07833-18-08356 |
| NDAA Compliant | Yes |
